The Innokin Sensis pod kit is classed as a the first set-up in a new wave of vape devices known as Fourth Generation Vaping Technology, so what exactly is it?

Who better to explain it all than Innokin and the team it worked with to design the chip, Fourier Inside.

Fourth Generation Vaping Technology innokin sensis

This is a guest post from Innokin and explains it all far better than I could, so over to the team at Innokin to tell us more:

Innokin Explains Fourth Generation Vaping Technology

Innokin has teamed up with Fourier Technology to develop the Sensis, the first vaporizer with 4th generation vaping technology.

From the first generation Ruyan cigalike to the latest devices, vape technology continues to evolve as improvements in technology and design increase the effectiveness and popularity of vaping.

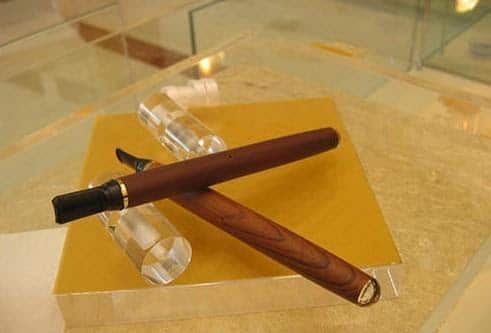

Fourth Generation Vaping Technology - ist generation cig-a-like
early cig-a-like

Vaporizer form evolved from cigalike to ego kit, box mod, closed pod, disposable pod to pod mod.

However, product form does not go hand in hand with vape technology evolution.

An example would be the closed pod and disposable pod, which appeared later than box mods but used the earliest generation vape power control technology.

What are the four generations of vape technology?

First-generation vape technology was basic, where direct power output to the coils could not be adjusted. With the push of a button, or by simply inhaling, the battery heated coils, changing the e-liquid into vapour to deliver nicotine and flavors.

Second-Generation vape technology introduced variable voltage and variable wattage, where adjusting the power output to the coils increases or decreases heat to personal taste.

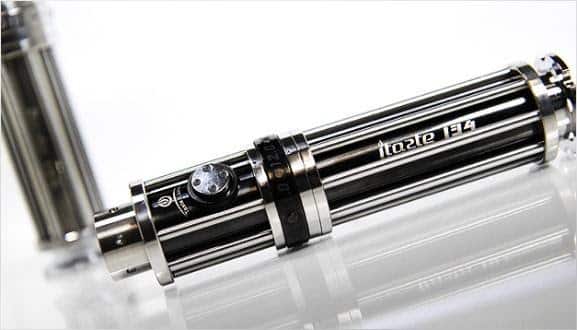

Fourth Generation Vaping Technology - innokin itaste second generation vaping

With adjustable voltage/wattage technology, vaporizers became smarter and more user-friendly.

The device chipsets read the coil resistance then automatically calculated power output to provide a safer, personalized experience across devices and tanks.

The simplicity of variable wattage has made it the most widely used vape technology today, especially in intermediate and advanced ecigs.

Third-generation technology with Temperature Control utilized more advanced chipsets and new types of coil materials.

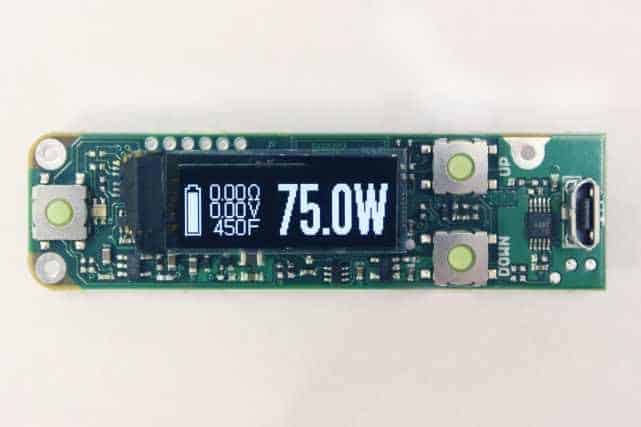

innokin chip

Designed to eliminate dry-hits and reduce potential harm from damaged cotton wicking, third-generation vape technology used resistance-temperature correlation to calculate coil temperature based on detected coil resistance.

Due to limited choices of coil materials and coil performance issues, temperature control is not used as widely as wattage mode.

Alternating Current Mode (ACM) is the Fourth Generation of Vape Technology.

innokin sensis Alternating Current Mode
Innokin Sensis – Alternating Current Mode

Earlier generations of vaporizers all used direct-current to power coils in a single direction. Alternating Current Mode sends electricity through the coil in both directions.

Ivan Zhao, CTO from Fourier Technology and PHD of UCL, says:

Our goal in developing Alternating Current Mode is to provide vapers with an even better experience and the vaping industry new ways to grow and improve. This exciting new technology is easy to use, deep in complexity and can be used by all current tanks, coils and pods.

We are looking forward to working with experienced users to discover the full potential of this exciting new vape technology in the hope of working together to create a smoke-free future.

According to Fourier:

Alternating Current Mode introduces Waveform Frequency Control to vaping.

Vapers can now adjust the Hertz frequency waveforms as well as the wattage output.

This upgraded output provides many advantages over the previous generation’s single direction current.

By selecting different types of waveforms and adjusting the frequency, the full spectrum of flavors can be produced from e-liquids and specific flavors enhanced.

ACM increases the efficiency of heat transfer between the coil and e-liquid, which improves flavors, extends coil life and much more.

Alternating Current Mode has been shown to help extend coil life by increasing coil saturation and reducing carbon buildup on coils.

The team say the Innokin Sensis is the first vape device that uses the fourth-generation vape technology to extend coil lifespan and enhance flavors.

For more information about Alternating Current Mode technology and Fourier, please visit Fourier Inside.

OK, and big thanks to Innokin and Fourier for clearing that up…

innokin sensis Alternating Current Mode
Innokin Sensis – Alternating Current Mode

If that’s got your vaping juices flowing, then check out Harley’s excellent review of the Innokin Sensis and see what he made of this fourth generation vaping technology.
