Introduction – The Pixie RDA by Vapefly

Vapefly are back once again following on with their excellent range of RTA’s and RDA’s this time with a new mini single coil RDA they call the Pixie.Vapefly Pixie RDA st header

Vapefly are a young company, Est in 2017, and are unsurprisingly based in China. They are gaining a great reputation; all of their products have been really very interesting so far including the, Galaxies MTL RTAWormhole RDA, Brunhilde RTA, Mesh Plus RDTA,  Horus RTA and the Galaxies MTL Squonk RDTA and of course the Core RTA which was a great pleasure to review not long ago.

Vapefly say this RDA is Small/Simple/Smooth! So will the Pixie RDA be a delight or is it a gremlin in disguise? Let’s find out with an up and close look……………

The Vapefly Pixie RDA was sent to us for the purpose of this review. As always my thoughts and views are my own.

See The Vapefly Pixie RDA in Action With My Video Review

Free Shipping Options

In The Box

  • 1x Pixie RDA
  • 1 x BF Squonk Pin
  • 2 x Hex Screws
  • 2 x Drivers
  • 2 x Vapefly Firebolt Cotton
  • 2 x 0.35Ω NI80 Coils
  • 1 x Manual
  • O rings

Pixie RDA kit display

Main Specs/Features

  • Diameter: 22mm
  • Height: 24mm
  • Tank Material: SS/Delrin
  • Drip Material: Delrin
  • Coil Building: Single Coil
  • Super easy single coil build deck
  • Interchangeable airflow set
  • Heat-resistance design
  • Side coil design to prevent juice spit
  • BF(Bottom Feeder) pin for squonk mods
  • Thread: 510
  • Colours: Gold, Rainbow, Stainless Steel, Gunmetal, Black

Design and Build Quality

The Vapefly Pixie RDA comes in a small card box with a paper over sleeve. As per usual with Vapefly they give you a good amount of spares to get you started.Vapefly Pixie RDA in box spares

The Pixie is a small 22mm diameter RDA with a height of only 24mm, not including the connection thread. When I received the Pixie it was clean and free of any machine oils, the RDA is made of stainless steel and Delrin.

The design and quality of the Pixie is like the rest of Vapefly products excellent.

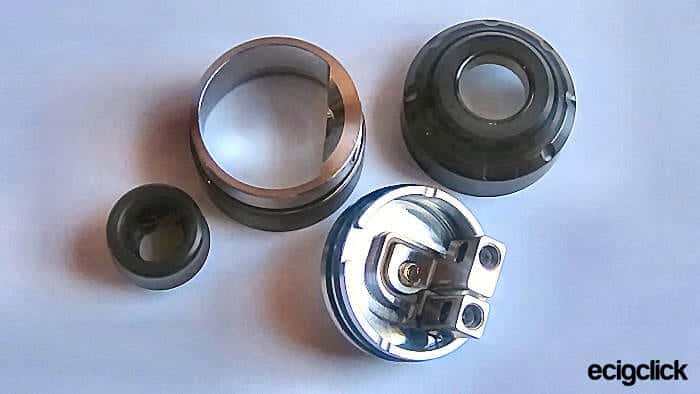

The Pixie dismantles in 4 pieces for easy cleaning.Vapefly Pixie RDA 4 bits


Is made from stainless steel, starting with the bottom of the base, you have all the normally expected information which has been engraved in to the base.Vapefly Pixie RDA base infoThe connection pin is gold plated and sticks out about 1mm from the SS 510 thread.Vapefly Pixie RDA 510 threadThis can be swapped for the BF Pin. There is a gold plated negative pin, so it is possible to completely dismantle the base for even easier cleaning. The base has 2 O rings to hold the barrel in place.Vapefly Pixie RDA base ringsThe body of the base has 2 notch cut outs for the tabs inside the barrel which help to hold the barrel in place.Vapefly Pixie RDA ovdeckThe positive post sits on a peek insulator the post is held in place by the connection pin, the hex post screws are made from SS the negative post is straight while the positive post is wider, almost a block.Vapefly Pixie RDA posts The juice well is shallow but putting the barrel in place increases the juice capacity.Vapefly Pixie RDA liquid extra

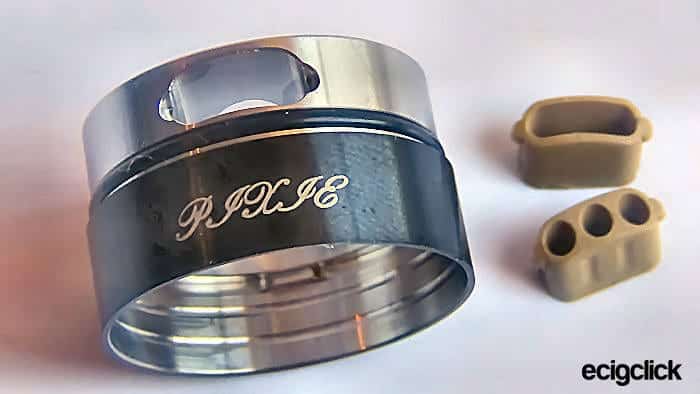

Is made of SS and (mine) painted a matt black on the outside with Pixie laser printed over the paint job, inside the barrel you have the matching tabs that fit into the notches on the base.Vapefly Pixie RDA af tab barrelAn O ring sits around the mid part of the barrel to keep the AF Ring in place.Vapefly Pixie RDA choice af barrelThe Airflow has interchangeable plugs made of a heat treated plastic, that will either give you wide airflow or restricted dot airflow the spare is in the box. Vapefly Pixie RDA wide af barrelVapefly Pixie RDA dot wide af barrel

Airflow Ring/Cap

Again made of SS, the inside has a tiny amount of bevellingVapefly Pixie RDA in capThe outside like the barrel has a matt black finish, the AF is handled by a wide slot or a dot AF.Vapefly Pixie RDA cap wide af Vapefly Pixie RDA cap dot afThe top of the cap has a notched pattern around the edging to help you turn the AF; you also have a raised heat fin to help with the heat dissipation.Vapefly Pixie RDA heat fin cap

Mouth Piece

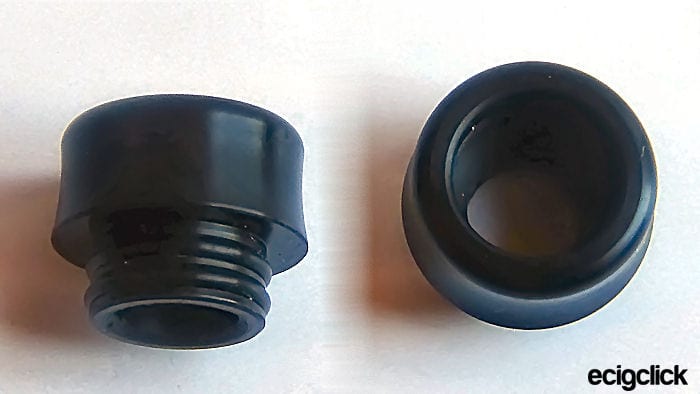

The 510 drip tip is made from black Delrin; the profile is shallow at 6mm with an outer diameter of nearly 12mm.Vapefly Pixie RDA MP

A Basic Guide to Coiling/Wicking

  • Pull off the cap and barrel, Choose which pin (BF or 510) you wish to use and replace by unscrewing the positive pin.Vapefly Pixie RDA out pins deck
  • Place your single coil into the post holes and screw down, heat, glow, strum.Vapefly Pixie RDA glow
  • Insert your cotton tuck the ends down into the deck.Vapefly Pixie RDA in cott
  • Dampen your cotton with e-liquid.Vapefly Pixie RDA cotton wet
  • Choose which airflow option you want and replace.Vapefly Pixie RDA plugs af
  • Replace the cap and barrel Vapefly Pixie RDA wide afVapefly Pixie RDA widedot af
  • Place on a mod

Tips: The posts for the Pixie RDA measure 4.5mm so I cut the coil tails at 4.5mm with my CoilyToolcoil cut pixie VF coily Don’t stuff your deck full of cotton as it will block the AF, the cotton I am using for this example is called “FireBolt” Vapefly kindly sent it along with the Pixie.vapefly cotton firebolt

A word about squonking with the BF pin

For me this isn’t an ideal RDA for squonking! Because of the way the pin is raised in the deckVapefly Pixie RDA depth deck caution is need when squonking as the pin doesn’t suck much liquid back to the bottle, that’s not to say it’s bad! But over squonking could be a real risk as are leaks from the AF if you put your device in a pocket or bag.Vapefly Pixie RDA pin choice

How Does The Vapeflt Pixie RDA Perform?

For this review I will be using the Pixie RDA on my Joyetech Espion Silk along with a homemade flat SS coil 0.24Ω my liquid of choice is Pinkman by Konceptxix.Vapefly Pixie RDA mod liquid

I have the ordinary 510 connection pin and the wide AF plug installed for this example.

15 to 25w

Using mouth to lung style of vape at 15w, airflow set to the single dot AF, the vapour production was good the flavour was very good, however, I found for me the draw was light and the vapour was a wee bit on the cool side. I put the wattage up to 20w then 25w and the heat did increase slightly without effecting the flavour, I was able to get a restricted direct to lung draw from 20w up.Vapefly Pixie RDA in use 2


Using direct to lung style of vape at 40w and the wide AF set to 1/2 open the vapour production was again good with a great flavour the added wattage enabled me to enjoy a nice warm vape. Pumping the watts up to 45w also opening the AF full I have to say the airflow is fairly quiet and smooth, the airflow hits the coil just right with no turbulence that I could detect, with this coil (0.24Ω) 50w was my limit as the RDA and vapour was beginning to get to hot for my liking lol.

I have since settled on 40w and the wide AF set to half as my go to with the Pixie.

Chain Vape test

I did this in power mode at 30w with the AF set to half, 6 toots until I felt the cotton was almost dry, the RDA being made of stainless steel did get hot but cooled quite quickly.Vapefly Pixie RDA test fire


  • Great flavour production
  • Good vapour production
  • Overall build and design quality
  • Very easy to insert the coil and cotton


  • For me, not ideal for squonking

Final Review Verdict

While the Vapefly Pixie RDA in my opinion is never going to be a major league cloud chucker, for me it fills the flavour department fully!

It’s great having a smaller than average RDA for those times when you want to taste your e-liquid but can’t blow the clouds!

Vapefly have filled a niche with the Pixie as far as I’m concerned, while there are small RDA’s out on the market I personally don’t have that many, and those I do, like my Derringer for instance, either spit hot liquid back at you or leak like a sieve, using the Pixie with the 510 pin in place has been a delight for me in building, wicking and maintaining this little chap.

While I’m not fond of the RDA in squonk mode, I would recommend the Pixie to those who want to try an RDA for the first time! Even if you can’t make your own coils you can buy pre-made these days, in fact Vapefly do an excellent range of pre-made coils on their website.

Would I replace the Vapefly Pixie RDA if I lost or damaged it? To right I would!

Used the Pixie? Let u know what you though in the comments below.

Free Shipping Options

Vapour Production
Flavour Quality
Squonk mode
Ease of building and use
Price Point
Buy again due to loss or damage
Hi my name is Kevin, I started vaping back in 2009 mainly because my little boy at 3 years old was starting to copy the way daddy smoked a cigarette! Over the years I have gained a good amount of experience with different types of vaping hardware but I'm just a normal guy who enjoys sharing my experiences. This is why I started my Youtube vape review channel in 2014. To date the channel has had over 500,000 views. Being disabled, vaping has given me a gateway to meeting people from all different walks of life, many of those I would not have met under other circumstances. The way I look at my reviews is, if I can convince just one person to give up the stinky’s my job is done. I class myself as a tinkerer as I like to take things apart to see how they work and put them back together, yes that includes e-cigarette mods! One day I would like to be able to design my own mod. I am a dedicated father, and husband to my sweetheart of nearly 30 years! Family to me comes before anything else.
