The Coilart Lux 200 Kit is a regulated 200w dual battery box mod coupled with the Lux Tank as a topper.Coilart Lux 200 Kit head

Coilart was established in 2016, their design team is based in the US but they manufacture their products in China.

They advocate a healthy, stylish vape culture around the world. Coilart hosted the 1st Global trick competition back in 2017, for which they were widely praised by global vapers and enthusiasts.

They have bought us products like Mage Mech V2.0 Stacked Edition, Mage RTA V2 and the Azeroth RDTA.

What Can We Expect From the Coilart Lux 200 Kit?

With 5 gorgeous colours available the Lux 200w Kit by Coilart is as beautiful as it is luxurious looking. It has a calibre of craftsmanship and aesthetic beauty that screams quality.Coilart Lux 200 Kit turn

The Lux mod is in the style of the good old square box mod and is mostly made from a zinc-alloy construction. The shiny marble finish on the side glass panels is superb, damn this thing looks and feel amazing!

It will fire up to 200w with a 0.005 second firing speed thanks to the new smart eagle chipset and it’s also fully customizable using a computer and the Coilart software.

The Lux Tank is a unique design that comes with 2 mesh coils it has smooth dual airflow slots. A little bit of a letdown in looks compared to the mod but the faux marble is interestingly different.

This kit was purchased by myself. As always my thoughts and views with this kit are my own after a considerable testing period.

Check out the Coilart Lux in Action



In The Box

  • Coilart Lux 200 Mod
  • Coilart Lux Mesh Tank
  • Spare glass
  • M1 coil (pre-installed)
  • M4 coil
  • O’rings
  • USB Cable
  • User manualCoilart Lux 200 Kit full kit

Features

Lux 200w

  • Size: 53x25x89mm
  • Battery: 2×18650 (not included)
  • Output: 5-200W
  • Output modes: VW, TC (Ni, Ti, SS)
  • Resistance range: 0.05-3Ω
  • Temperature range: 95-315°C / 200-600°F
  • Reinforced glass side panel with UV printing
  • Self adjusting battery contact
  • Firmware upgradeable

 Lux Tank

  • Size: 24x50mm
  • Capacity: 2ml (TPD) 5.5ml (Standard)
  • Coils: 0.15Ω M1 coil, 0.15Ω M4 coil
  • Faux Marble resin styling
  • Slide top fill
  • Adjustable bottom airflow
  • 810 drip tip

Design and Build Quality

The Kit come presented nicely in a card box, with the tank and spares in another little box inside the kit box.

Lux 200w Mod Walk Around

Workface

The mod has a large fire button made of plastic, 2 large plastic adjustment buttons and a micro USB port for charging and updates.Coilart Lux 200 Kit mod face

The OLED screen is large and bright the display has all relevant information using a good sized font.Coilart Lux 200 Kit font screen

Top and Bottom and Backside of the device

The bottom of the Lux 200 has the normal safety marks as well as design info along with 6 venting or board cooling holes.Coilart Lux 200 Kit bottom mod

The top of the mod has a stainless steel connection with slots for those that use 510 airflow. The 510 threading is well turned, the connection pin is gold plated and spring loaded and sits to the front of the device over the workface.

The device will hold atomisers up to 24mm in diameter.Coilart Lux 200 Kit connection

The backside of the mod has “LUX200” branding.Coilart Lux 200 Kit advert side

None of the sides have been rounded so after a while the mod may become uncomfortable to hold.

Battery Doors and Sled

The device has 2 battery doors that are gorgeous they are made from reinforced glass with UV printing to give them a marbled pattern, the main door has a slight movement to it while the other has none.Coilart Lux 200 Kit uv doors

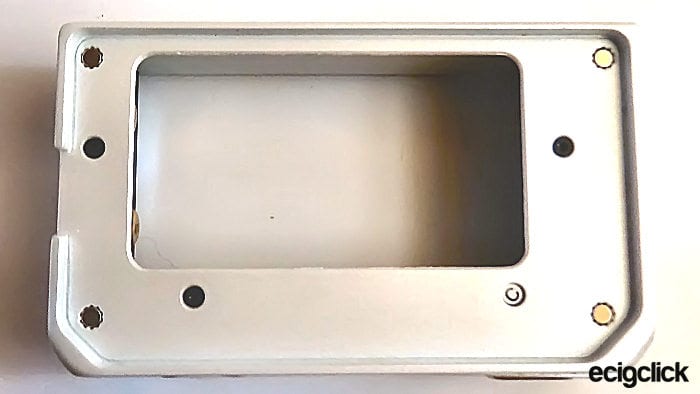

The battery sled is clean and made of plastic, and has 4 magnets either side to hold the doors in position. Coilart Lux 200 Kit sledCoilart Lux 200 Kit sled back

The battery marks are moulded into the plastic.Coilart Lux 200 Kit orientation marks

The connection points are gold plated with both negatives being spring loaded.

Lux Tank Walk Around

I have the 2ml TPD version I am currently waiting for the larger capacity replacement bubble glass and more coils to arrive.

The tank is made of stainless steel, brass, resin and Pyrex, the tank breaks down into 6 parts including the coil.Coilart Lux 200 Kit tank parts

Base, Coils and Airflow

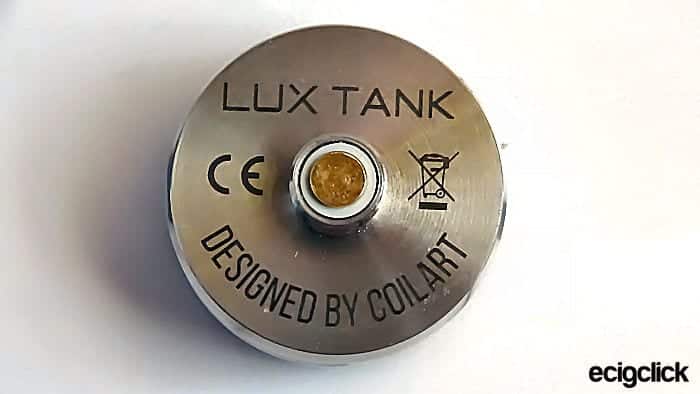

The bottom of the base has the normal info laser printed on to the SS.Coilart Lux 200 Kit tank bottom

The 510 threading is very well turned, the connection is a non-adjustable gold plated pin (not recommended for hybrid connections).

The airflow ring is made of resin and has 2 wide slots, the airflow ring doesn’t spin all the way around they have used a stainless steel peg as a stopper.Coilart Lux 200 Kit 510 and airflow

The base cup has good threading for the coils and an O’ring stopper ring for the glass to sit upon.

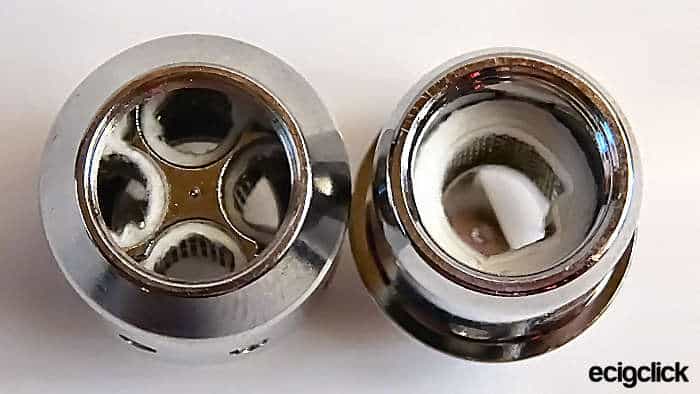

Coilart have supplied 2 coils with the tank:Coilart Lux 200 Kit tank coils

  • 0.15Ω M1 – 50 to 90w – Mesh Single Coil
  • 0.15Ω M4 – 80 to 150w – Mesh Quad Coil

Coilart Lux 200 Kit tank mesh coils

Glass and Chimney, Fill Port

The glass is made of Pyrex the EU version will hold 2ml of liquid while the standard version will hold 5.5ml.Coilart Lux 200 Kit pyrex tanks

The fill Port and Chimney section is in one piece, made of brass the fill port consists of 2 kidney shaped holes that are covered by the top cap.Coilart Lux 200 Kit fill port brass

The chimney section screws directly into the coil. It’s rather short but it has a small O’ring in place behind the thread to stop the coil from being flooded.Coilart Lux 200 Kit tank chimney

Top Cap | MouthPiece

The top cap has a stainless steel inlay surrounded by a resin shell the SS threading is turned well. There is a wide washer inset into the cap so when it is screwed on to the fill port section no leaks will occur!Coilart Lux 200 Kit top cap inside

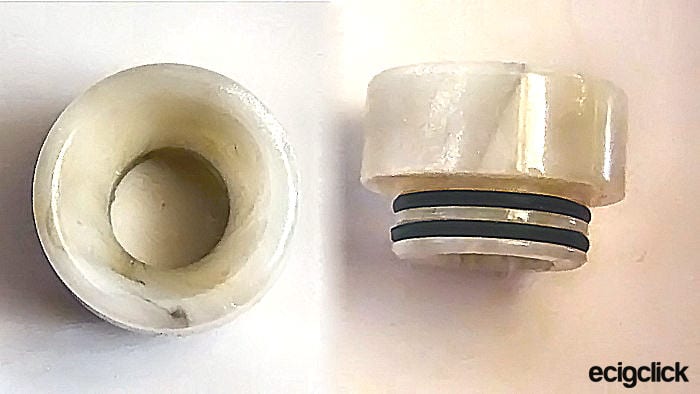

The 810 mouthpiece is made or resin and fits into the top cap. It’s a tight fit being that the mouthpiece is the type with 2 O’rings and the top cap has an embedded O’ring.Coilart Lux 200 Kit tank Drip Tip

The whole kit has be designed and manufactured extremely well with top grade materials.

How Does Coilart Lux 200 Kit Perform?

For this example I will first use the M4 0.15Ω coil followed by the M1 0.15Ω I have filled the Tank up with Strawberry and Lime e-liquid by Frukt Cyder.

Basic Quick Start Guide

Lux tank

I recommend emptying the tank before changing your coils or you will make a mess.

  1. Unscrew the connection base from the tank to change coils.
  2. Unscrew the old coil from the base and replace with a new one.
  3. Prep the coil by dropping a few drop of e-liquid onto the cotton within the coil.

Coilart Lux 200 Kit prep coil

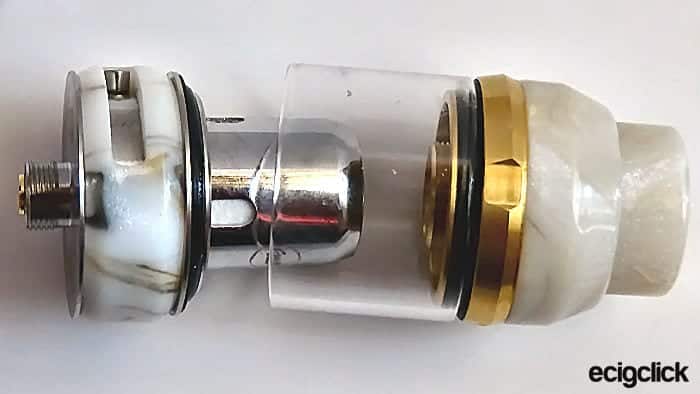

Screw the base back into the body of the tank.

Coilart Lux 200 Kit tank together

Unscrew the top cap and fill with liquid.Coilart Lux 200 Kit fill tankReplace the cap and screw on to the Lux 200 Mod, leave for 5 minutes so the cotton can soak up more e-liquid.

Lux 200 Mod

Remove the battery door/s and insert your 2 x 18650 batteries following the battery orientation marks.Coilart Lux 200 Kit in batterys

The mod does supports on board charging via the micro USB port, although for safety I would recommend charging your batteries using a standalone charger such asd the Golisi S6.

5 rapid clicks of the fire button will turn the device on and off.

  • Click the fire button 3 times to switch modes; Power, Bypass, TC Modes Ni, Ti, SS
  • Power mode the device will give you a suggested wattage based on the Ω of your coil.
  • Press fire 4 times to change puff strength, Strong, Weak, Normal, and Custom.

Choosing the Custom setting you can set different power every second i.e. 1s 150w, 2’s 200w, 3s 160w, 4s 120w, 5s 80w etc

This can also be setup via the Coilart software available via their website along with other attributes like firmware upgrading.

Safety Protections

The mod includes 10 protections these include:-

  • USB input
  • Equalizing charge system
  • Low voltage
  • Low resistance
  • Output short circuit
  • Over time
  • Over charge
  • Over Temperature
  • Over Current
  • Anti loaded battery

Flavour and Vapour

M4 Coil at 80-120w

Starting out at 80W and the AF wide open, I was pleasantly surprised to receive a warm flavoursome vape with dense cloud straight off the bat from the Lux tank!Coilart Lux 200 Kit toot test

Bumping the watts up to 120w in 10w increments, I found that the vapour gets extremely hot as does the tank. However, the tank does cool quite quickly, the flavour sort of petered out for me around 95w.

My go to vape with this tank and coil is up to 80w.

M1 Coil – 65-70w

Switching out for the M1 coil, which is much more my style, vaping it around the 65/70w range the flavour was very good with a decent amount of vapour production the tank still gets warm but not overly so.Coilart Lux 200 Kit thumb

Coil life

I have been using this kit for 2 weeks.

The M4 coil lasted me 4 days with heavy use at 80w before I started getting a burnt taste!

The M1 coil so far has lasted me well over a week vaping it at 65w, I have just noticed a slight drop in the flavour while writing this.Coilart Lux 200 Kit info screen

Battery Life etc

I have been using Avatar 2100mah 18650’s in the Lux, and have managed a good 3.5 to 4hrs of use.

The mod is rather heavy once the batteries and tank are installed which might be a downer for some.

Also because the mod is square and the sides have not been rounded in anyway some might find it uncomfortable to hold for long periods.

Although I personally find it OK to hold for extended periods, maybe because I have large hands!Coilart Lux 200 Kit hand

Pros

Lux 200 Mod

  • Very good quality
  • Very good design
  • Excellent manufacture
  • Beautiful to look at
  • Easy to use
  • Easily understood menu system
  • Firmware upgradeable
  • Configurable with PC software
  • Good battery life

Lux Tank

  • Fairly good looking
  • Fair coil life
  • Good flavour and vapour production

Cons

Lux 200 Mod

  • Un rounded sides
  • Fairly heavy with batteries and tank installed

Lux Tank

  • Very hot vapour in the 95/120w range
  • Tank gets very hot

Final Review Verdict

To be honest I found it hard to find points I didn’t really like about the Coilart Lux 200 Kit and those I have listed as Cons above really are just nit picking.

The size of the whole kit is perfect for me and my large hands, although I can see where some might not like the overall weight and shape.

The whole kit is stunning to look at, and while the tank isn’t my cup of char it functions very well as a sub ohm tank.

Would I Recommend the Lux 200 Kit?

Yes I would!

Would I buy the Coilart Lux 200 again due loss or damage?

Again yes I would; however I’d be tempted to leave the tank in the box in favour of an RTA or RDA.

Have you used this kit? Would love to hear your thoughts in the comments below!

Kevin Worthing Vaper
Kevin Jeffrey

Hi my name is Kevin, I started vaping back in 2009 mainly because my little boy at 3 years old was starting to copy the way daddy smoked a cigarette! Over the years I have gained a good amount of experience with different types of vaping hardware but I'm just a normal guy who enjoys sharing my experiences. This is why I started my Youtube vape review channel in 2014. To date the channel has had over 500,000 views. Being disabled, vaping has given me a gateway to meeting people from all different walks of life, many of those I would not have met under other circumstances. The way I look at my reviews is, if I can convince just one person to give up the stinky’s my job is done. I class myself as a tinkerer as I like to take things apart to see how they work and put them back together, yes that includes e-cigarette mods! One day I would like to be able to design my own mod. I am a dedicated father, and husband to my sweetheart of nearly 30 years! Family to me comes before anything else.

REVIEW OVERVIEW
Build Quality - Mod
9
Build Quality - Tank
9
Design - Mod
9.5
Design - Tank
9
Flavour
8
Vapour Production
10
Kit Ease Of Use
10
Hi my name is Kevin, I started vaping back in 2009 mainly because my little boy at 3 years old was starting to copy the way daddy smoked a cigarette! Over the years I have gained a good amount of experience with different types of vaping hardware but I'm just a normal guy who enjoys sharing my experiences. This is why I started my Youtube vape review channel in 2014. To date the channel has had over 500,000 views. Being disabled, vaping has given me a gateway to meeting people from all different walks of life, many of those I would not have met under other circumstances. The way I look at my reviews is, if I can convince just one person to give up the stinky’s my job is done. I class myself as a tinkerer as I like to take things apart to see how they work and put them back together, yes that includes e-cigarette mods! One day I would like to be able to design my own mod. I am a dedicated father, and husband to my sweetheart of nearly 30 years! Family to me comes before anything else.
coilart-lux-200-kit-reviewAs kit overall the Coilart Lux 200 is superb. Great quality and very good flavour. If you like your mods to be on the heavier side this is one for the shortlist.
