This time I’m taking a look at the recently released Innokin Coolfire Z60, a nicely weighted kit that has a clean look to it with a large battery that can last more than a day!

This kit comes with the new Zlide Top tank, which is an updated and redesigned version of the popular and original Zlide tank.

Innokin coolfire z60 brick wall dark

Founded in 2011 and based in China, Innokin is considered by many to be the granddaddy of vaping, their history of research and manufacture is impressive!

Some of their kits include – the Gozee Kit, Kroma 217 Z Force and Endura T22 Pro.

Innokin is also a market leader in MTL tank design, with successes like Ares 2 MTL RTA and Zenith Pro tank in their catalogue.

Visit The Innokin Website for more details!

What Can We Expect From the Innokin Coolfire Z60 Kit?

Every element of the Coolfire Z60 kit is crafted from premium materials and has the unmistakable feeling of Innokin quality!

Innokin coolfire z60 on top of car

The Coolfire Z60 has a variable wattage output of up to 60W.

There is a lock switch to put the device to sleep saving power and preventing accidental activation and interesting firing modes that help to preserve the coil.

coolfire z60 switch

The new Zlide Top tank is optimised for mouth-to-lung and restricted direct-to-lung vaping; with sliding top fill and top airflow to give leak-free assurance.

zlide top airflow

This tank is compatible with all Z coils including Innokin’s new Duoprime coils, delivering a huge range of vaping experiences!

The Coolfire Z60 Kit is available in 7 colours – Purple, Blue, Gunmetal, Stainless Steel, Black, Pink and Red.Innokin coolfire z60 avail colours

This product was sent directly to me by Innokin for the purpose of review!

As always my views and thoughts are my own after a reasonable testing period.

In The Box

  • Innokin Coolfire Z60 mod
  • Zlide Top Tank
  • Spare 2ml glass tube
  • 0.3Ω Z Coil
  • 0.2Ω Duoprime Z Coil (installed)
  • USB Type C charge cable
  • O-Rings
  • RDL mouthpiece
  • User manual

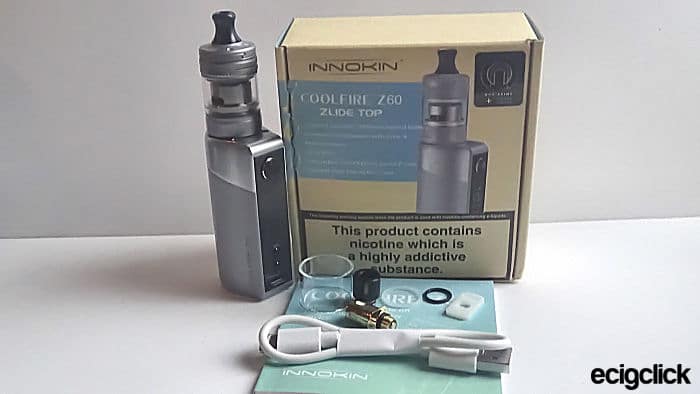

Innokin coolfire z60 complete kit

Specifications

Coolfire Z60 Mod

  • Size Approx: 75x35x25mm
  • Material: Zinc Alloy + Stainless Steel
  • Battery: 2500mAh (internal)
  • Display: 0.96” OLED Colour Screen
  • Output: 6-60W (VW)
  • Modes: Coil +, Refresh
  • Type C USB charging
  • Resistance range: 0.2-3.5Ω
  • Mechanical On/Off slide switch
  • 510 connection

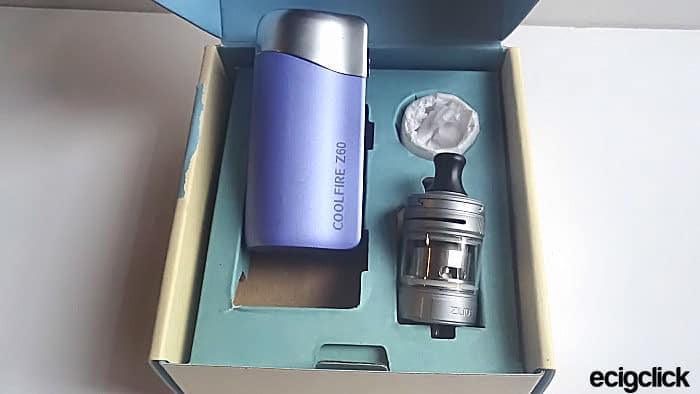

Innokin coolfire z60 box whats in

Zlide Top Tank

  • Size Approx: 55x25mm
  • Material: Zinc Alloy + Stainless Steel
  • Capacity: 2ml (TPD), 3ml (Standard straight glass), 4.5ml (Bubble glass)
  • Coil: Z Series coils
  • Sliding top fill
  • Adjustable top airflow
  • 510 connection

Innokin coolfire z60 about zlide top tankInnokin sent me the Purple and the Silver versions of the kit and these kits come in 100% recyclable card packaging!

Innokin coolfire z60 kits display

My review is based on the TPD version of the kit. There is also the standard version which comes with a 3ml liquid capacity and a spare 4.5ml bubble glass in the box.

Innokin Z60 Kit Build Quality

Both the Z60 mod and the Zlide Top tank are made from Zinc Alloy and Stainless Steel.

The whole Z60 Kit has been well manufactured with a clean modern look and feel, with excellent quality and design!Innokin coolfire z60 side advert

Innokin – Zlide Top Tank

Primarily the Zlide Top tank is a restricted direct-to-lung (RDL) tank with the option to be used as a mouth-to-lung (MTL) tank when the airflow is reduced enough! We tell you what these terms mean in our Guide To Vaping Styles.

My 2ml tank had the new MTL 0.6Ω Duoprime coil installed and there’s a spare RDL 0.3Ω coil in the box!

The kit also comes with a spare 510 mouthpiece which is wider than the installed MTL Delrin 510 mouthpiece. Also included are some O-rings and a silicone fill stopper.

Innokin coolfire z60 drip tips

The airflow is fully adjustable and has a nice smooth airflow control ring!

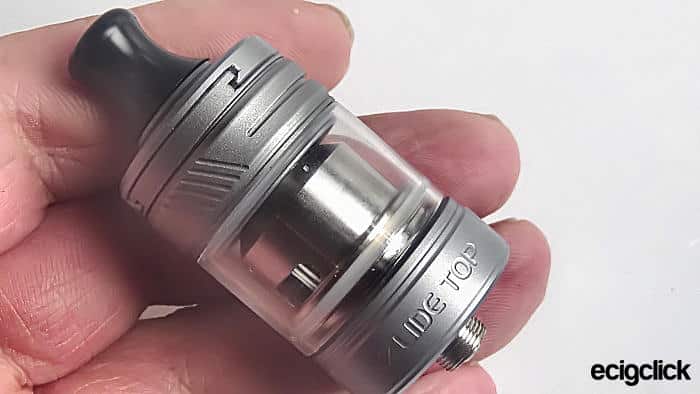

Innokin coolfire z60 Empty tank

The tank dismantles into 6 parts – including the mouthpiece and coil.

Innokin coolfire z60 zlide top parts

To access the fill port find the arrow embossed on the top of the cap, simply push the slide open!

zlide top filling

The base cap has advertising engraved into the metal sides “Innokin” and “Zlide Top” and unscrews for coil replacement. As normal the printed design info and safety marks are on the bottom.

Innokin coolfire z60 zlide seeds

Two plug-and-play coils have been included with the kit –

  • Z Coil 0.6Ω 9-13W Duoprime MTL –
    The outer layer of mesh is of higher resistance than the inner coil, which means it heats slowly. This design draws e-liquid into the wicking material and the inner coil rapidly.
    Duoprime coils maintain full saturation between each vape which helps performance and longevity!Innokin coolfire z60 about duoprime coils
  • Z Coil 0.3Ω 30 – 40W RDLInnokin coolfire z60 kit coils

The Zlide Top tank is compatible with the complete Z Coil Platform series.

Innokin coolfire z60 z series coils

Innokin Coolfire Z60 Mod

This device measures 75mm tall or approximately 130mm with the tank in place. The 510 connection can take other atomisers with diameters of up to 25mm.

Innokin coolfire z60 sugar cane

From The Top

The Z60 has a Stainless Steel 510 connection and a Gold-plated spring-loaded pin, the threading has been well-turned.

Innokin coolfire z60 connection

Innokin Z60 Body

Surrounding the connection is a Stainless Steel cap giving the device a dual colour body!

Innokin coolfire z60 zinc and SS

On one side of the device, there is the printed advertising “Coolfire Z60”.

Innokin coolfire z60 in front of seed

Innokin Z60 Workface

The device has a colour OLED screen that measures 0.96”, it displays all the normal info you’d expect to see and the screen is clean and bright.

Innokin coolfire z60 face work

The device has a plastic fire button and adjustment buttons that are quite clicky.

The internal battery is 2500mAh and is charged via the 1.7A Type C USB port.

On the bottom of the device, you will see the safety and design marks along with a reassessed battery switch, which is common to a lot of previous Coolfire devices!

Innokin coolfire z60switch on and off

Quick Start Guide

Innokin Zlide Top Tank

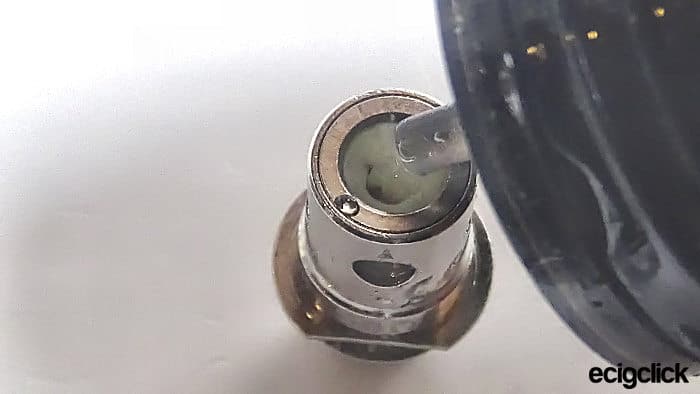

  • Prime your Z coil with a few drops of e-liquid and push the coil into the tankInnokin coolfire z60 duoprime coil prep
  • Re-screw on the base cap
  • Push open the fill port and fill with e-liquidInnokin coolfire z60 fill zlide top
  • Let the tank stand for about 3 minutes before firing so the cotton can soak up more e-liquid!

Innokin Coolfire Z60 Mod

Make sure to fully charge the device before first use!

Innokin coolfire z60 charge cablee

Basic Functions

  • 3 quick presses of the fire button will turn the Z60 on and off, the device can be put to sleep using the recessed master switch on the bottom of the mod.
  • The device will fire between 6 and 60W – to select the output hold one of the adjustment buttons for 2 seconds then adjust as normal.
  • Press the down adjustment button and the fire button to lock and unlock the device.
  • Pressing the up adjustment button and the fire button together will show you the battery voltage guide, Ohms of your coil and Puff count.

Display

The battery bar on the display shows different colours depending on the current battery charge level.

  • Green: 100-60%
  • Yellow: 60-20%
  • Red: 20% or less

Menu options

Press the adjustment buttons together to enter the Menu…

  • Coil+ ~ wattage/voltage, sends a pulse to your coil at the end of every puff, this help to increase coil life.
  • Wattage ~ standard variable wattage output
  • Refresh ~ if the flavour becomes muted use this to pulse the coil at 40% of your current vaping wattage
  • Cut-off ~ puff time is adjustable from 3 to 18 seconds
  • Screen ~ cut-off time is adjustable from 5 to 180 seconds
    Innokin coolfire z60 screen menu

How Does the Innokin Z60 Kit Perform?

For this review, I will be filling both Zlide Top tanks with Mejusa “Berry Lemonade”.

For MTL, I will be using the Silver mod with the installed 0.6Ω Duoprime coil and for RDL I will use the Purple mod with the 0.3Ω Z coil.

Innokin coolfire z60 on wall

I’m not going to say I’m in love with this kit, however it does function exactly as it’s described. It fits my style of vaping fine with the 0.3Ω Z coil.

Innokin coolfire z60 brick display

With the Zlide Top airflow restricted to a ¼ open I received a good MTL vape from the 0.6Ω Duoprime coil with a decent flavoursome vape at 12W.

Innokin coolfire z60 12w screen

Opening the airflow for an RDL draw and using the 0.3Ω coil, setting the wattage to 35W I received a good flavour and plenty of vapour.

Innokin coolfire z60 35w toot

Coil & Battery Performance

I have been using these kits for almost 2 weeks!

The 0.6Ω Duoprime coil as an MTL with coil+ mode active at 12W is still going ok, although I am expecting to have to change it shortly!

The 0.3Ω Z Coil DTL coil lasted me just about 4 days at 30/35W on standard wattage mode – mind you, I’ve hit this one quite hard at times LOL.

Innokin coolfire z60 leaves fall

The 2500mah battery used as an MTL device is excellent lasting me almost 1½ days! And as an RDL device, the Z60 battery lasted me approx 3.5 hours at 35W.

Innokin coolfire z60 outside flower dark

I have got to say when I was first sent this kit I wasn’t that impressed with the coil+ mode, as it makes a slight firing sound when you let the button go. What the unit is doing is pulling more liquid into the coil for the next puff thereby keeping the coil saturated and extending its life.

I found that the standard wattage mode didn’t make this noise which pleased my OCD highly LOL

Innokin coolfire z60 hand comfort

Pros

  • Quality and Design are very good
  • Great battery life (MTL)
  • Fair battery life (RDL)
  • Comfortable in the hand
  • Duoprime coils are long-lasting
  • Good flavour
  • Good Vapour Production

Cons

  • Coil+ mode noise
  • 2ml capacity (not a fault of the kit – that is down to TPD regulations!)

Final Review Verdict

Although the Zlide Top tank allows for a great mouth-to-lung vape with the airflow turned down, this is much more of a restricted direct-to-lung tank which fits my vape style wonderfully!

I did find myself using the kit in standard wattage mode a lot because the Coil+ mode makes a firing noise which sets off my OCD lol.

Would I recommend the Innokin Z60 Kit?

“Yes”, this kit would be suitable for all levels of vape experience!

Would I buy this kit again due to loss or damage?

“Yes”, I would consider replacing the kit.

Let us know what you think of the Innokin Coolfire Z60 kit in the comments below!

Visit The Innokin Website for more details!
