Today I’ll be reviewing the long-awaited addition to the Mag range, the Smok Mag-18 Kit.

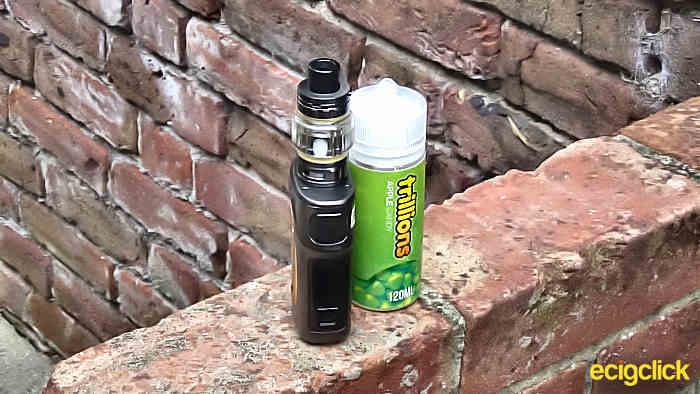

Smok Mag-18 wall outside

There is no doubt that Smok is a household name within the vape community and I own many of their products! One of my earliest Smok Mods was a device called the Prospect! It was a great pipe simulation for back in the day!

Smok Mag-18 article header

This is a 230W, high-performance dual 18650 battery kit that has been paired with the TFV18 XL tank.

Smoktech is part of Shenzhen IVPS Technology, they are better known as “Smok”. As a China-based e-cigarette Designer/Manufacturer they have an impressive range of kits stretching back to 2010!

smok mag 18 banner

The Mag range includes – the original Mag 225W TC Kit, Mag Baby kit, Mag Grip, Mag P3, Mag M270 as well as the Mag 40W Pod Kit.

Worldwide Shipping – Save 20% With Code ECC

What Can We Expect From the Smok Mag-18 Kit?

There are 9 colours to choose from in 2 ranges:

Leather version – Gun Metal Gold (Under review), Gun Metal Red, Prism Rainbow, Black Gun Metal and Nano Chrome.

mag 18 leather colours

TPU version – Grey Red, Beige White, Black and 7 Colour and Black.

mag 18 tpu colours

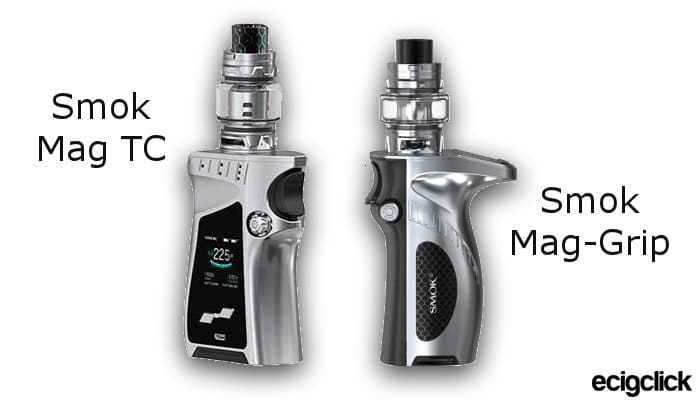

Most of the Mag range is shaped similar to the hand portion of a firearm. I own both the Mag 225 TC and the Mag Grip, both these devices with their unique shaping are comfortable to hold and exceptional in use!

Smok Mag-18 Old TC and Grip

The Mag-18 in comparison to its predecessors is more along the lines of a conventional box mod, with a sleek body that runs on 2×18650 batteries and an output of up to 230W. It has an optimised and reinforced chipset with a colourful 0.96in TFT screen.

Smok has paired the Mag-18 with the TFV18 XL 7.5ml Sub Ohm Tank. However, if the kit is purchased within the TPD area, the kit is supplied with the 2ml TFV Mini Tank!

Smok Mag-18 together apart

This sample kit was sent to me directly by Smok for this review.

What did I think about the Mag-18 kit?

Let’s find out and like always my thoughts and views are my own after a considerable testing period.

In The Box

  • Smok Mag-18 Mod
  • TFV18 Tank (standard & EU standard version)
  • TFV18 Meshed 0.33ohm coil (installed) (standard & EU standard version)
  • TFV18 Dual Meshed 0.15ohm coil (standard & EU standard version)
  • TFV-Mini V2 tank (TPD Version)
  • Mini V2 S1 0.15ohm Single Mesh coil (installed) (TPD Version)
  • Mini V2 A2 0.2ohm Dual coil (TPD Version)
  • Spare glass
  • USB Type C cable
  • User manual

Smok Mag-18 complete kit

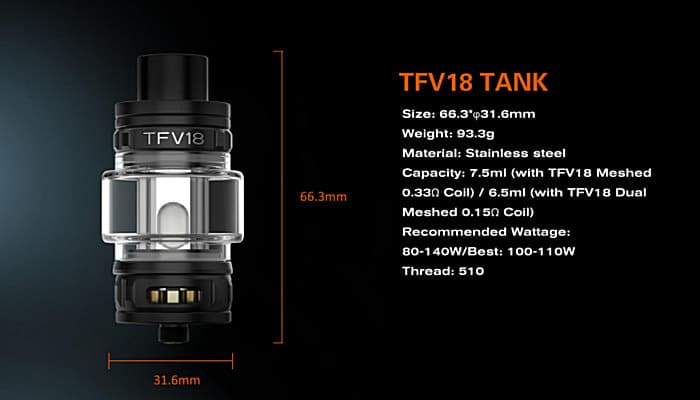

Smok TFV18 XL Tank

  • Size: 66.3×31.6mm
  • Capacity: 7.5ml (Standard with 0.33ohm coil) / 6.5ml (Standard with 0.15ohm coil) / 2ml (TPD)
  • Coil: TFV18 and TFV16 coils are compatible
  • Button swing top fill
  • Adjustable Triple bottom airflow

Smok Mag-18 tan specs

Smok Mag-18 Mod

  • Size: 90.2×63.5×32.5mm
  • Display: 0.96in TFT colour Screen
  • IQ-X Chipset
  • Output: 5-230W (1-8V)
  • Resistance range: 0.1-2.5Ω
  • User modes: Variable Wattage
  • Type C USB charging – 2A charge rate
  • Battery: 2×18650 (not included)

Smok Mag-18 mod specs

Design and Build Quality

This review is based on the standard edition of the kit that comes nicely displayed in a card box with a few extras included – a spare glass, type C cable, a spare coil and O-rings.

Smok Mag-18 box content

TFV18 XL Tank

This is a large sub-ohm tank that delivers some great DTL vapour. The tank measures 66.3mm tall with a base diameter of 31.6mm.

Smok Mag-18 empty tank

Materials and Parts

Made of Stainless Steel, the TFV18 XL is also comprised of Pyrex and Delrin.

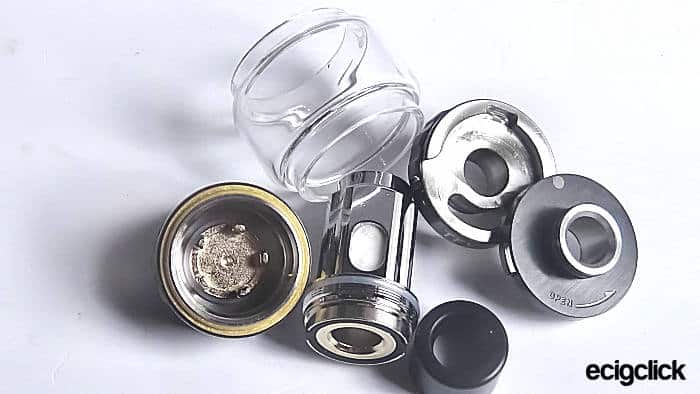

This tank has 5 parts including a sleeve mouthpiece and a pre-installed coil.

Smok Mag-18 parts of tank

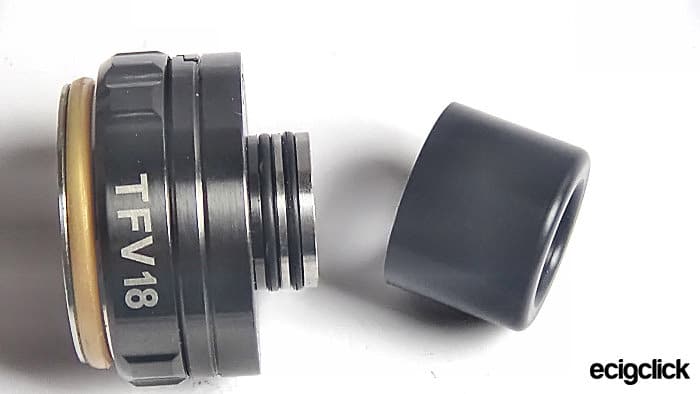

It’s a shame that Smok has once again gone down the road of giving us a sleeve mouthpiece. I really would like to have seen an 810 replaceable tip considering the size of this beast!

Smok Mag-18 sleeve drip tip

Its fill cap has a spring-loaded button which flips the door open to reveal the vape exhaust and a wide kidney-shaped fill port.

Smok Mag-18 fill cap

This tank comes with a 7.5ml glass and a spare bubble glass in the box!

Smok Mag-18 bubble glass

The base cap is designed so the coil acts like a chimney, which acts as a bridge between the base and the fill cap.

Smok Mag-18 connection coil

Inside the base are 5 gold post contact points.

Smok Mag-18 coil base insides

Controlling the triple bottom airflow is a firm-to-turn AFC (Air Flow Control) ring.

Smok Mag-18 airflow tank

And of course, on the bottom of the base, you will see printed all the normally expected legal info.

Smok Mag-18 base info

The TFV18 XL Tank comes with 2 very large coils.

  • 0.33Ω TFV18 Meshed Coil (pre-installed) 100 to 110W
  • 0.15Ω TFV18 Dual Meshed Coil 100 to 110W

Smok Mag-18 coils availableThis tank is also compatible with the TFV16 coil range!

Smok Mag-18 Mod Overview

This device has a sleek look to it and at certain angles I can see the subtle relationship to the earlier versions of the Mag range!

My device is made of Zinc Alloy and faux Leather. It is comfortable to hold and fires easily in either hand.

Smok Mag-18 use ready

From the top

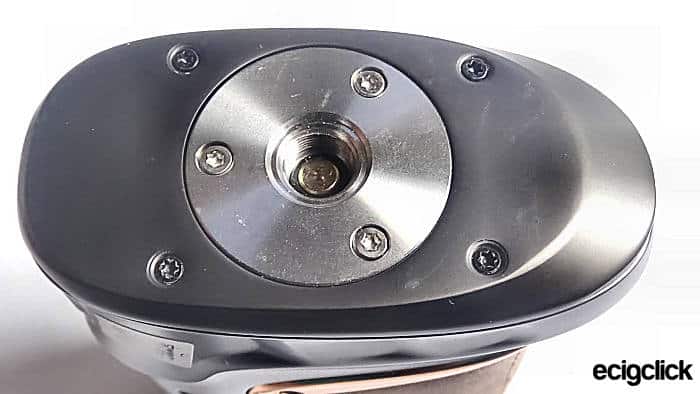

As normal the mod has a 510 connection and a Gold-plated connection pin.

Smok Mag-18connect 510

The chassis has a rounded back with Leather padding that serves for comfort, the Leather has been embossed with “Smok®”.

You will note that like some of Smok’s competitors, the device has a metal cradle.

Smok Mag-18 embossed

One side of the body has been moulded with “Mag-18”.

Smok Mag-18 casting

Smok Mag-18 Workface

Located on the front of the device, you will see a large fire button.

The mod has a 0.96”inch TFT colour screen as well as the normal adjustment buttons along with a 2A Type C charge port.

Smok Mag-18 face work

Smok Mag-18 Bottom

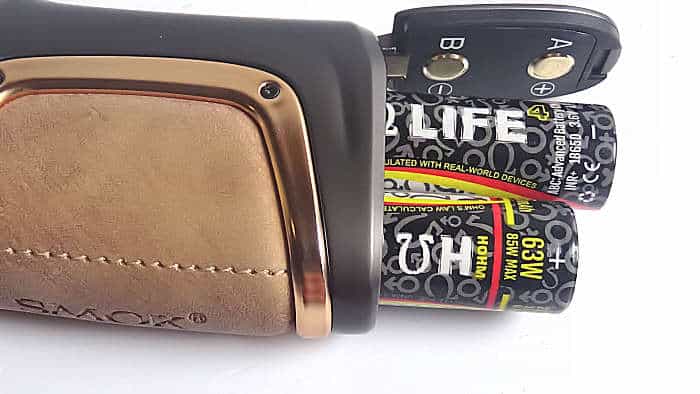

The battery door is the flip type, with a slide to open. This device will take two 18650 batteries and the door is printed with the normal safety marks.

Smok Mag-18 door info battery

The inside of the door and the battery compartment are Gold contact points with battery orientation marks.

Smok Mag-18 battery door inside

The whole kit has a good quality to it, although the design is good it’s not exactly ground breaking.

Quick Start Guide

Smok TFV18 XL Tank

Choose one of the two coils which come with the kit.

  • Prime your coil with e-liquid on all exposed cotton and screw the coil into the tank base.Smok Mag-18 coil prep
  • Screw the base and coil into the main body of the tank.
  • Open the fill cap door and fill the tank with E-liquid.Smok Mag-18 fill tank
  • Close the door and let the tank stand for about 3 minutes before firing so the cotton can soak up more liquid!

Screw the TFV18 XL onto the Mag-18 mod and enjoy!

Smok Mag-18 Device

Place two 18560 batteries into the device following the orientation guide.

You can charge the batteries via the 2A Type C port, but as always I recommend external charging.

Smok Mag-18 charge port


  • Click the fire button 5 times fast, to turn the device on and off.
  • To lock and unlock the wattage, press both adjustment buttons together.
  • Completely locking and unlocking the device, press the fire button 3 times rapidly.
  • Adjust the wattage – use the adjustment buttons.
  • Changing the screen theme colour, press the fire button and the right adjustment button together = 6 colours are available.Smok Mag-18 screen colours

The mod doesn’t have a menu function per se – however, pressing the fire and left adjustment button together, will bring up the puff counter clear screen.


This device is protected with the optimised and highly efficient IQ-X chipset and has 8 built-in protections.

Smok Mag-18 IQX

So How Does the Smok Mag-18 Kit Perform?

For this review, I will be using the pre-installed 0.33Ω coil in the TFV18 XL Tank and I will be filling up with Trillions Apple Candy.

Smok Mag-18with liquid

I love this kit, but then I like all the Mag range! It functions great and feels very comfortable in my hand.

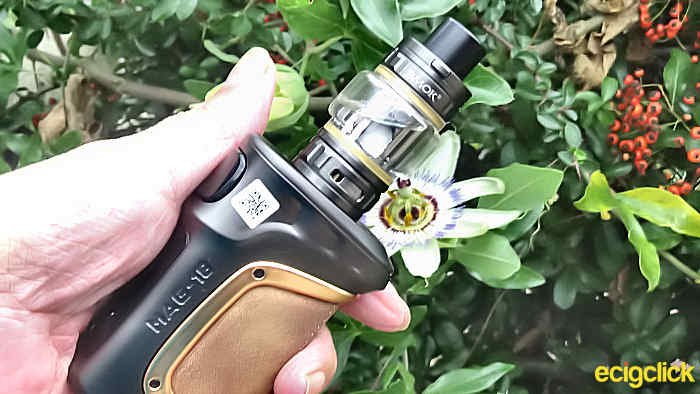

Smok Mag-18 flower outside

TFV18 XL Tank

In my experience, like all Smok TFV tanks, this one functions wonderfully, but OMG is it thirsty or what! Just to show how thirsty the TFV18 XL is, I vaped my way through over 600mls of liquid in 2 weeks! Granted I’m a heavy vaper, but normally 100mls would last me approximately 1½ weeks!

Smok Mag-18 toot outside

By nature I am not a high-wattage vaper, however, I have been regularly vaping this tank at 100W.

Airflow and Vape Production

The triple airflow is slightly wider than the mini version and very airy, I have received better than average vapour production. And a good but not quite stellar flavour.

Chain vaping this beast has been amusing, at one point I managed to fill my small office with vapour and couldn’t see a hand in front of my face!

Smok Mag-18 cloud outside

I have been using the 0.33Ω coil at 80/100W and the coil lasted me nearly a week of constant use!

I had a strip of TFV16 dual mesh coils hanging around and can confirm they fit and work in the tank just fine.

Smok Mag-18 Device

The mod itself is impressive, it’s great to see Smok release a comfortable-to-hold and easy-to-use proper mod.

Considering the size of the device and the high wattage it is capable of, it’s not as heavy as you would think for a dual battery mod!

Smok Mag-18 out of box

The screen font size however isn’t as big as some comparable devices and sadly I do still need my specs to read the screen info!

Smok Mag-18 screen 100

I was impressed – 2 freshly charged 18650 batteries lasted me nearly 4hrs at 80W.

Smok Mag-18 dual 18650


  • Quality and Design
  • Good coil life
  • Good flavour
  • Excellent vapour production
  • Comfortable in the hand
  • Easy to use and fire



  • Sleeve mouthpiece
  • Extremely thirsty

No concerns with the Mag-18 device

Final Review Verdict

Well, the Mag is back and you know what? I think Smok has done a great job with the kit!

I’m always banging on about how 2ml capacity tanks suck, well the TFV18 XL is 7.5ml so that shut me up lol.

The Mag-18 device, if you’re like me and like a big old handful, this might be a great device for you, it’s comfortable to hold and very easy to use.

Would I recommend the Smok Mag-18 Kit?

I’d recommend the Mag-18 device in a heartbeat, but with a word of caution about the tank!

I’m not a big fan of the TFV atomisers, due in part to their high liquid consumption, but no one can argue the tanks don’t deliver great vapour with good flavour.

Would I buy this kit again due to loss or damage?

I would definitely purchase the Mag-18 device again, but I would take a hard pass with the TFV18 XL tank.

Worldwide Shipping – Save 20% With Code ECC

Build Quality
Comfort in Hand
Tank Quality and Design
Vapour Production
Flavour production
Kit ease of use
Replace if Lost or Stolen
