The Vandy Vape Pulse AIO V2 Kit is an update to the previous models.

pulse aio v2 banner

So far we have had the Pulse AIO, Pulse AIO.5 and the Pulse AIO Mini kits. What does the V2 have to offer?

Worldwide Shipping – Save 10% With Code ECC

What To Expect From The Vandy Vape Pulse AIO V2…

The “AIO” stands for “All In One”. Meaning the tank, battery and chipset all live in the same housing.

pulse aio v2 components

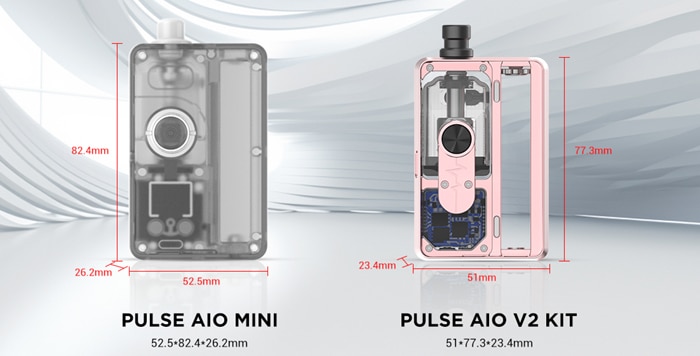

This is a weeny little kit – it is even smaller than the Pulse AIO Mini!

pulse aio v2 size

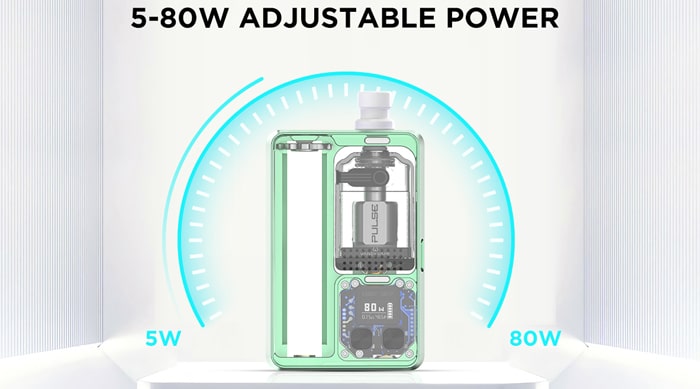

You will need a single 18650 battery (which is not included) and the output is adjustable for Wattage or Voltage from 5-80W (0.5-6V). Plus there are temperature control / TCR and Bypass user modes to play with.

pulse aio v2 output

It is worth noting there is no USB port on here, you will need an external charger. This does also mean there will be no firmware updates.

This is very customisable with plenty of replaceable parts – from the side panels, buttons to the button housings. You will just need a T5 screwdriver bit to disassemble.

pulse aio v2 dismantle

You can 3D print your own parts – Vandy Vape will even give you blueprints – download them here!

pulse aio v2 panel 3d print

The circuit board is IP67 rated for water resistance just in case you get any e-liquid leaks. Not to mention the whole device can be dismantled for cleaning.

pulse aio v2 ip67

To reduce internal resistance, the battery positive connection is connected directly to the circuit board.

pulse aio v2 battery connection

The internal drip tip is adjustable to grip the tank contacts and the battery contact is adjustable too.

Inside the drip tip are airflow outlet restrictor pipes, there are 3 sizes included in the kit. You also get 2 drip tip sleeves – White and Black.

pulse aio v2 drip tip restrictor

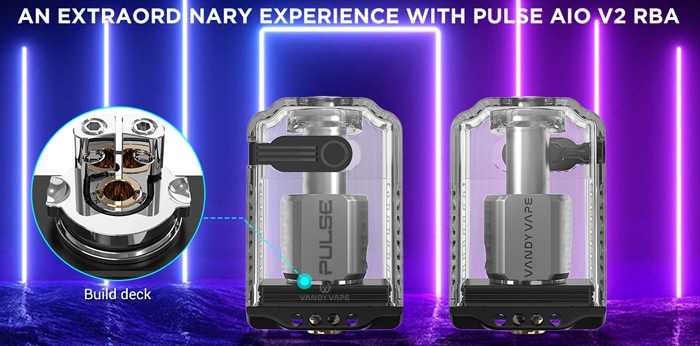

Included in the kit is the Pulse AIO V2 RBA – which is basically a tank with a removable rebuildable deck.

pulse aio v2 rba

The deck is designed like a “Bridge” (a universal tank base which allows use of different types of coil or stock coils). It is compatible with any BORO tank.

It has 2 posts with recesses to allow access for cutting the coil legs.

pulse aio v2 deck airflow

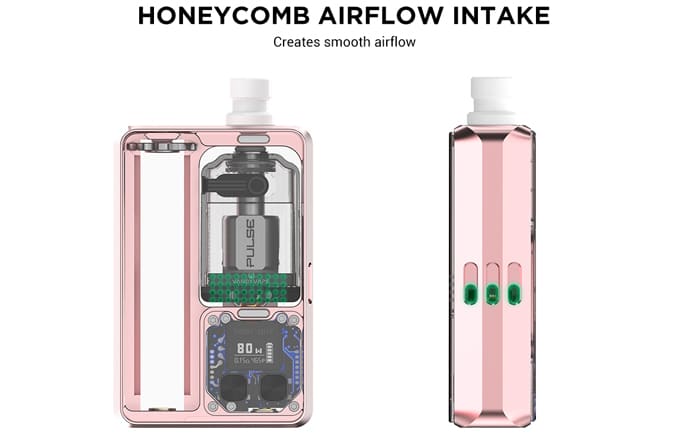

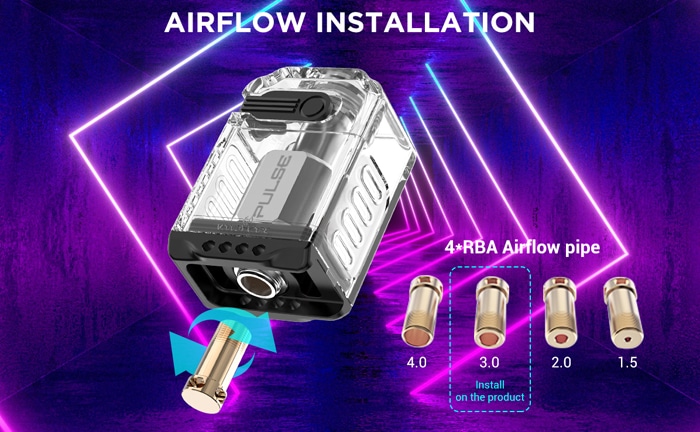

On the deck there are replaceable airflow inlet pipes, there are 4 sizes to choose from to restrict the incoming airflow from the honeycomb inlets.

pulse aio v2 airflow

A side fill port allows you to fill with up to 6ml of your own e-liquid.

A 510 adaptor is included to allow you to build the deck and provide power whilst building. This just screws into the mod to bypass the tank section.

Here is an introduction from the co-designer – Tony B.

There are 6 colours to choose from: Black, Klein Blue, Violet, Red, Celeste and Sakura Pink.

pulse aio v2 colours

Kit Includes

  • Vandy Vape Pulse AIO V2 device
  • 4x airflow pipes
  • 510 building adaptor
  • 2x drip tip
  • RBA
  • Accessory bag
  • 3x drip tip airflow pipe
  • User manual

pulse aio v2 contents

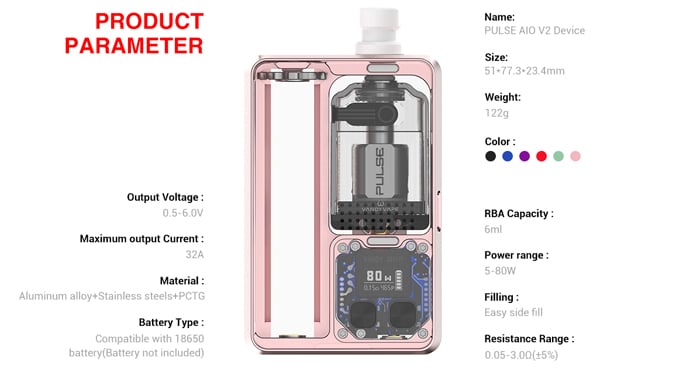

Vandy Vape Pulse AIO V2 Specs

  • Size: 51×77.3×23.4mm
  • Output: 5-80W (0.5-6V)
  • Battery: Single 18650 (not included)
  • User modes: VW, VV, TC, TCR, Bypass
  • Display: 0.42in OLED screen
  • Resistance Limits: 0.05-3ohm
  • RBA capacity: 6ml
  • Side fill port
  • IP67 circuit board waterproof rating
  • DIY customisation options
  • Replaceable key switch circuit board
  • 3D printable replaceable panels
  • Replaceable drip tips and drip tip restrictor pipes
  • Honeycomb airflow
  • Single coil build deck
  • 4x replaceable deck airflow restrictor pipes
  • Adjustable battery and tank contacts

pulse aio v2 specs

A lot of clever design features have been included on this kit!

I would like to know if the device is compatible with other Boro tanks? This is not mentioned on Tony’s video or the Vandy Vape website?

Anyway do you think that they have thought of everything with the new Vandy Vape Pulse AIO V2 Kit? Let me know in the comments below!
