For this review we are going to be taking a look at a gorgeous modern little kit – the OBS Engine 100w.

This is a traditional sub ohm device, paired with the OBS S tank.

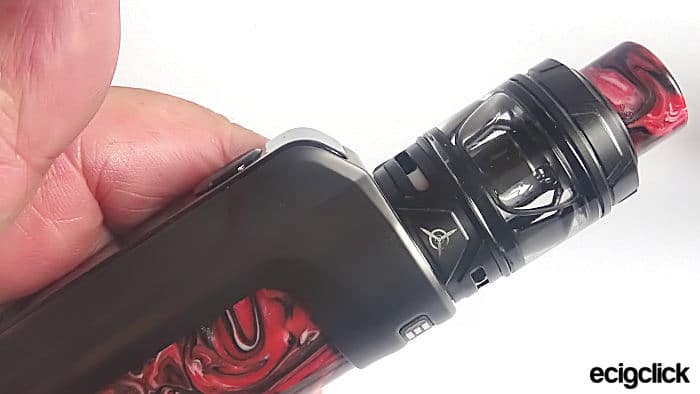

obs engine 100w in hand 2ml tank

OBS as a company has been around since 2014, are based in China and have a well respected name within the vape industry!

The Engine RTA’s series certainly made its name, as well building the brand name for quality and functionality.

The company has bought us the Cube series of mods as well as some RDA’s like the Crius RDA; OBS have also released a few pod systems like the Skye kit and Cabo kit.

What Can We Expect From the OBS Engine 100w Kit?

The OBS Engine 100W Kit is a pocket friendly sub ohm kit, designed for Direct to Lung vaping, and includes the 2ml TPD compliant S tank.

obs engine 100w 2ml check hand

Powered by a choice of removable batteries to provide a maximum output of 100W, the device can be customized with replaceable battery sleeves.

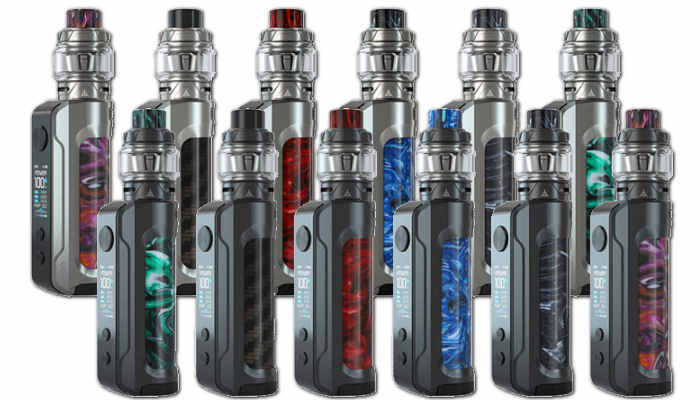

The chassis for OBS Engine 100w Kit has been produced in two series – Stainless Steel and Gunmetal – each has 6 distinctive coloured resin battery sleeves to choose from.

obs engine 100w colours available

This product was purchased for the purpose of review.

As always my thoughts and views are my own after a considerable testing period.

Save 10% With Code ECC

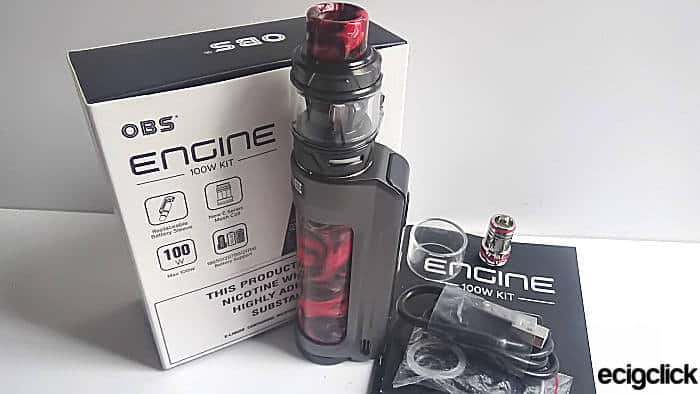

Inside the Box

  • Engine 100W mod
  • Engine 2ml S tank (6ml standard)
  • 18650 battery adaptor (battery not included)
  • E1 0.4Ω mesh coil
  • E2 0.2Ω mesh coil (pre Installed)
  • Spare glass
  • Spare O-rings
  • USB Type C Cable
  • User manualobs engine 100w kit full

Features

  • Size: 90x37x27mm
  • Output: 5-100W
  • Battery: 1x 18650 / 20700 / 21700
  • Display: 0.96in LED screen
  • USB Type C – 2A charge
  • Interchangeable battery sleeves

Design and Build Quality

The OBS Engine 100w Kit comes in a cardboard box with a paper over sleeve.

obs engine 100w max wattage

The mod is well designed with a good quality of manufacture, the S tank is a very nicely built standard Sub Ohm tank which had good quality to it.

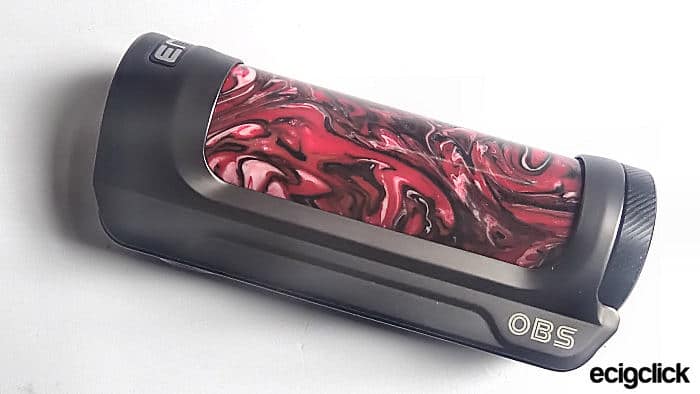

OBA Engine 100w mod

I obtained the gunmetal and ruby red version of the kit.

obs engine 100w tank full 2ml

The mod stands at 90mm tall with the S tank it measures 137mm, the width of the mod is 37mm with a tank diameter of 27mm.

OBS Engine 100w Body

The body of the device is made from zinc alloy with a replaceable resin battery sleeve!

The body has a moulded feel with chamfered edging, the device is very comfortable to hold, and the resin sleeve gives the device a modern hip look.

obs engine 100w battery case

It has a stainless steel 510 connection point with a gold plated sprung pin, the threading is well turned.

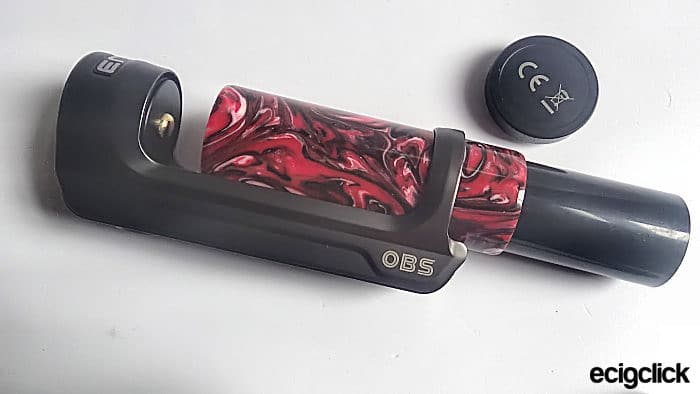

OBS Engine 100w – Dismantling the Mod

Unscrew the battery cap on the bottom of the mod and simply slip out the resin sleeve and battery adaptor.

obs engine 100w mod taken apart

OBS Engine 100w Battery Screw Cap

Outside the cap has the CE and don’t vape in a bin marks, inside the cap it has a minus mark to indicate battery orientation.

OBS Engine 100w Main Chassis

Inside the case has a gold plated contact point that is spring loaded.

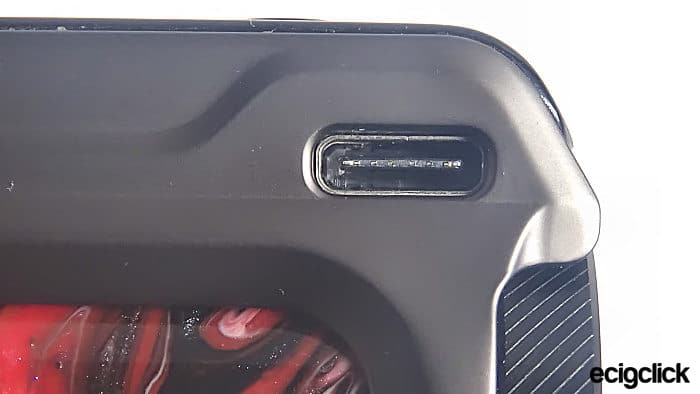

On the left side of the chassis is the USB C charge port.

obs engine 100w usb c port

The right side has “OBS” printed in white.

On the back in silver is the word “Engine”.

The Mod Face

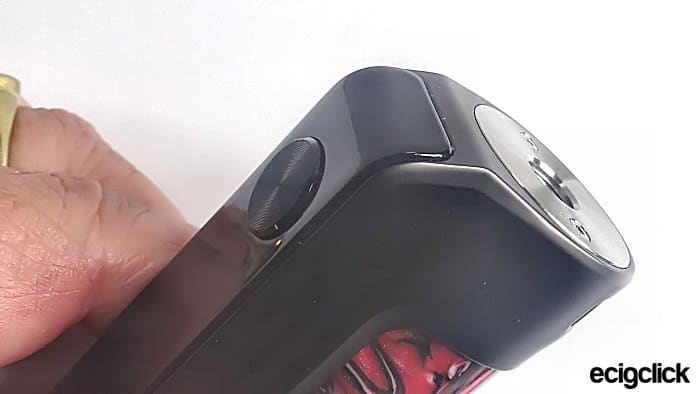

On the front is a black plastic panel, which curves over at the top and bottom of the mod.

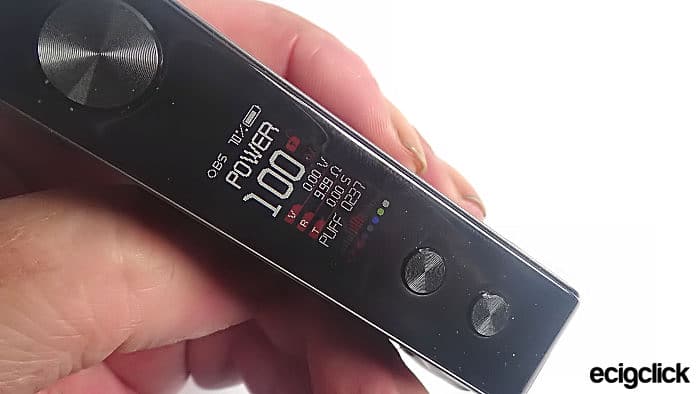

The device has a 0.96inch colour OLED screen.

screen curved

Adjustment and fire buttons have a nice clicky feel to them and are made of plastic.

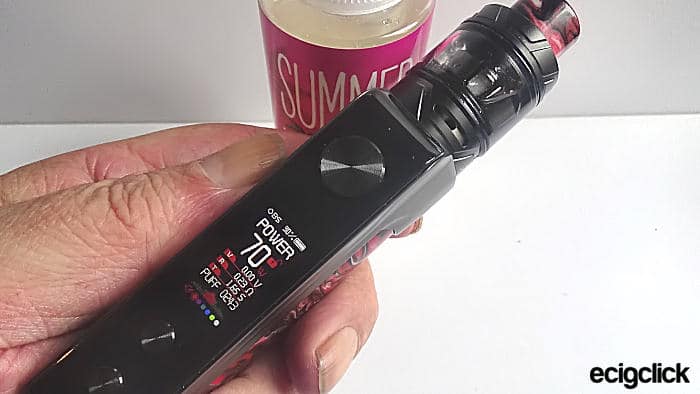

70w 2ml check hand

OBS 2ml S Tank

Made of Stainless Steel, Pyrex glass with a resin drip tip, the diameter of the tank is 25mm.

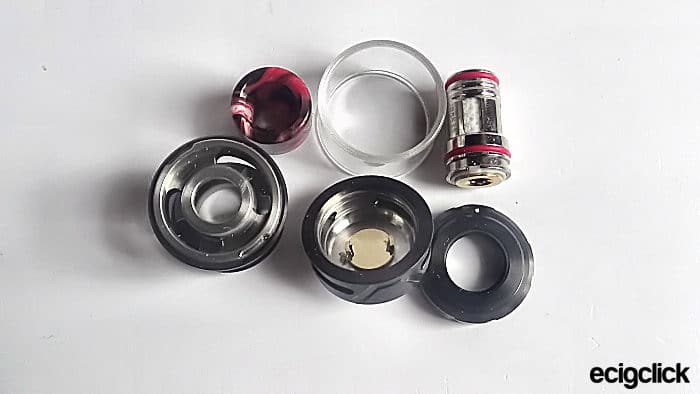

6 tank parts

This tank Dismantles into 6 parts including the coil, the S tank is of good quality and design.

Components

The 810 resin mouthpiece matches the battery sleeve.

obs engine 100w tank cap fill

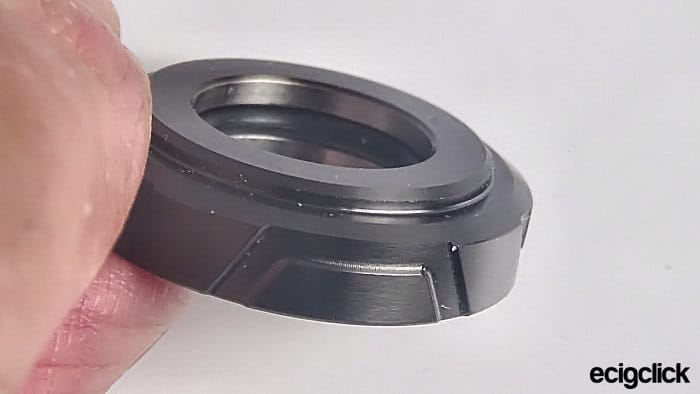

There is an embedded O ring in the cap for firm seating of the mouth piece; the top cap is a ¼ turn and lifts off the tank for easy filling.

Fill Port / Chimney Assembly

It’s one piece with O rings at either end to hold the glass in position and the fill port is wide.

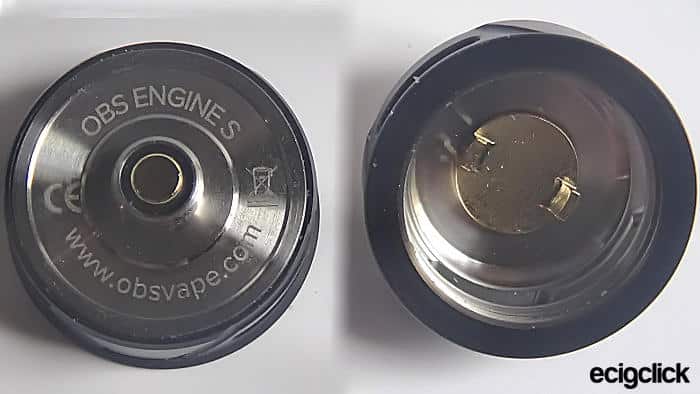

Base and Airflow

On the base you will see that OBS has lightly engraved the required information, and the connection point is a gold plated pin.

Inside of the base are 2 small gold plated protections that make contact with the coil.

obs engine 100w airflow base tank

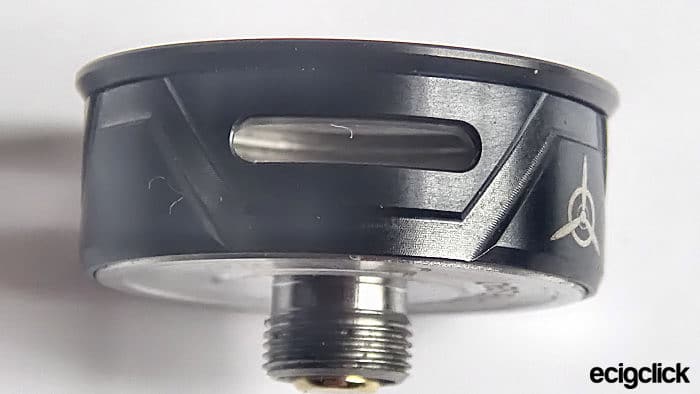

The airflow for this tank has a bottom triple airflow, what you put one on it is mirrored by the other two.

obs engine 100w tri airflow

The tank comes with a spare 2ml glass – a 6ml glass is available for purchase separately.

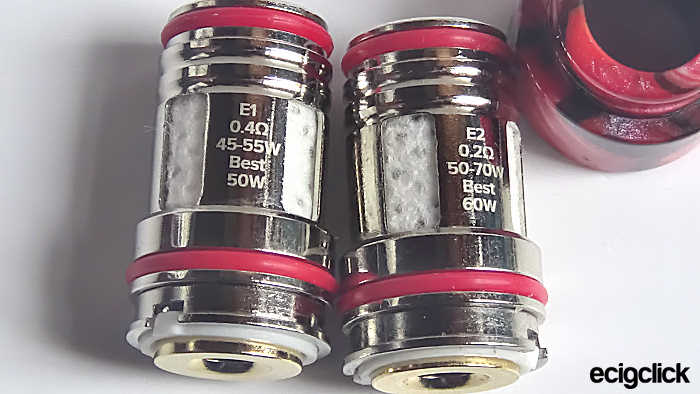

The 2 coils that OBS have included with the kit are:

  • E1 0.4Ω mesh coil, 45 to 55w best at 50w
  • E2 0.2Ω mesh coil, 50 to 70w best at 60wincluded coils

I couldn’t find other replacement coils for the S tank online at this time!

How Does the OBS Engine 100w Perform?

For this review I will be using the pre installed 0.2Ω coil in the S tank

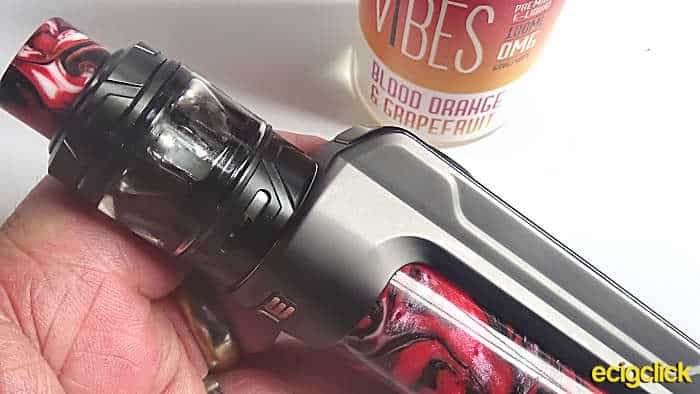

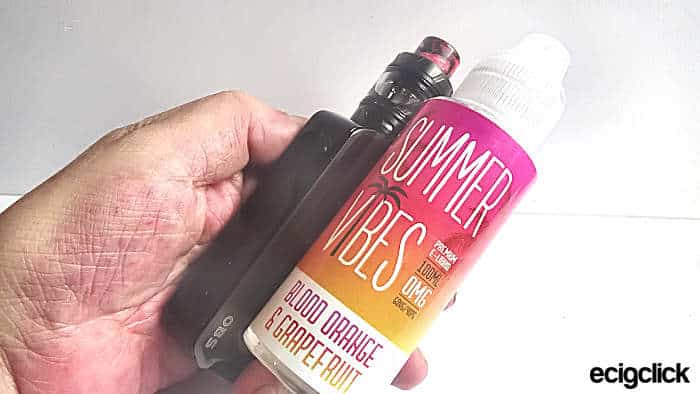

The liquid I will be using today is Summer Vibes “Blood Orange & Grapefruit”.

OBS Engine 100w Quick Start Guide

OBS 2ml S Tank

  • Always Prep your coil before first firing your device – drip a few drops of liquid onto the cotton.

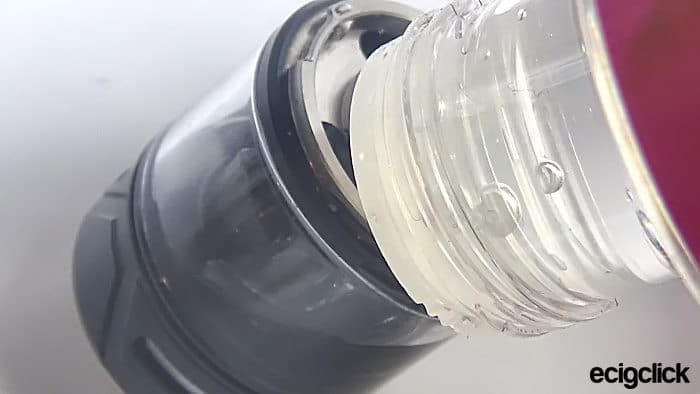

  • Re assemble the tank and remove the top cap fill with liquid, replace the top cap and screw the S tank on to the OBS Engine 100w mod.fill tank s 2ml

Wait a 2 minutes before firing so the cotton can soak up more liquid.

OBS 100w Mod

Install a battery – you can charge a battery while it is installed in the mod safely, however I tend charge all batteries via my external charger.

  • X5 presses of the fire button to turn the device on and off.

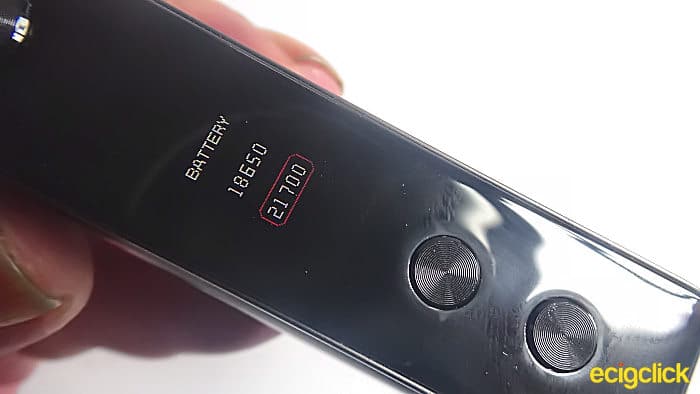

  • You will be asked which battery you have installed. type battery menu
  • To change the theme colour press the fire button X3 times for each colour.
  • The device has an auto lock to change the wattage press either adjustment buttons X3 then scroll to your preferred wattage!
  • To clear the puff count press the – and fire buttons together.

The device has several safety features built in – overheating, overcharging and reverse polarity!

OBS Engine 100w Kit In Use

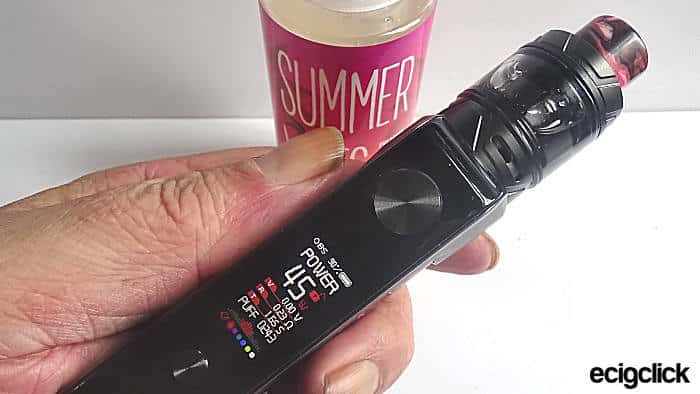

Starting at 45w with the airflow on the S tank closed to the half point, I received a decent restricted DTL draw, the vapour was good and cloudy surprisingly the flavour wasn’t too bad either.

Upping the wattage in 5w increments until I reached 70w, I found the higher up I went the vapour became a lot warmer; I was surprised to find the flavour was still good, although I did get a little spit back at 70w!

obs engine 100w 45w 2ml puff

Switching over to my OBS Engine Nano RTA with the airflow almost closed so I could enjoy a loose MTL style vape at 15w, the Engine 100w mod functioned very well producing a standard amount of vapour and a better than average flavour from my RTA which was no surprise!

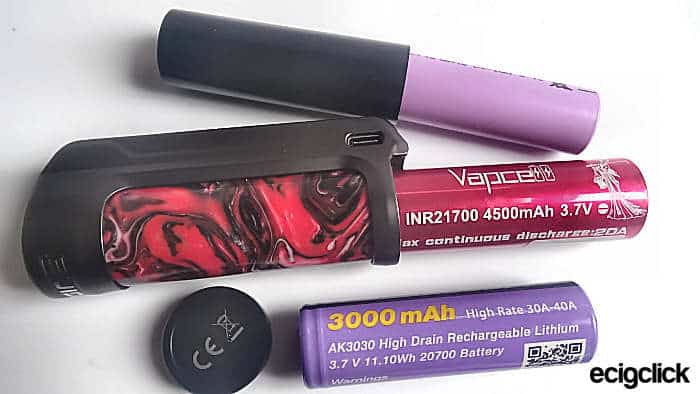

OBS Engine 100w Battery life

With an 18650 battery the maximum the wattage is 60w!

With 20700 and 21700 both reach the full 100w.

I have tested all 3 types of battery in the mod and with the S tank.

Below are the rough times that battery lasted me at 60w!

  • 18650 – 2 ½ hours
  • 20700 – 3 ¾ hours
  • 21700 – 5 hoursobs engine 100w choices battery

Of course battery life depends on your usage, I am a heavy vaper so my times might not match yours.

OBS Engine 100w My Experiences

When I first started using the kit I couldn’t get used to the idea of the auto lock, pressing one of the adjustment buttons 3 times before I could adjust the device.

After a few days this was ingrained in my brain lol.

Another point I want to make is at higher wattage the 2ml tank drinks faster than a sailor on a weekend pass!

I have now purchased the 6ml bubble glass to solve this small problem – while still a thirsty little tank at least it’s now tolerable to me!

Pros

OBS Engine 100w Mod

  • Good quality
  • Well designed
  • Easy to use
  • Comfortable in the hand
  • Good battery life (21700)

OBS 2ml S Tank

  • Good flavour
  • Good vapour production

Cons

  • 2ml tank (need I say more)

Final Review Verdict

This really is a cute kick ass little vape kit!

The kit is well made with good quality, it’s small enough to keep in your pocket and comfortable enough to hold for an extended time, 5hrs with a 21700 is plenty of vape time for me as a travel mod!

My only real negative point after using the device for 1½ weeks is the fill capacity of the 2ml S tank and how it empties so fast – I now have the 6ml bubble glass to solve that.

I tend to be rather wary with stock coil tanks as they never seem to deliver for me, so I was rather surprised to find the tank produces good flavour and vapour quality!

Would I recommend the OBS Engine 100w Kit?

“Yes” ideal kit – for those who want to give DTL a go or for those with more experience that are looking for a small pocket friendly vape with a kick behind it!

Would I buy this kit again due loss or damage?

I will be buying another as Mrs J wants one lol, even so if it was lost or damaged! I would still replace it.

So…

Is this a vape kit you’re looking to buy?

Please let me know your thoughts and opinions in the comments below!
