The Innokin Coolfire Z50 kit review, and today is a special day for me, as I’ve always been a big fan of Innokin so I’m excited to be taking a look at the newest addition.

Created in collaboration with YouTube Reviewers Phil Busardo and Dimitris Agrafiotis, this is part of the Platform series of tanks and now mods.

Innokin Coolfire Z50 article head

Founded in China 2011, Innokin has an extensive back catalogue of devices and tanks.

Back in the day Innokin had great success with all their e-cigarettes mods, especially their Coolfire range, and I have many of Innokin devices in my collection that I still use to this day!

Coolfire 1, Coolfire 4, Coolfire 4+, Coolfire 4 TC and Coolfire Mini.

Who could forget the hand grenade styled Coolfire 2!

innokin coolfire 2 hand grenade

Not me that’s for sure! I’ll never forget walking through Gatwick airport with it in my hand and being stopped by armed police!

After an extensive explanation of what the device was for and with a demo! I was told to put it in my pocket and leave it there until I left the airport grounds 🙂

Weirdly Innokin never did produce a Coolfire 3, strange that!

What Can We Expect From the Innokin Coolfire Z50 Kit ?

The kit comes with the Innokin Zilde tank, I won’t be covering the Zlide in this review to any great extent basically because I can’t add anything more significant to the excellent review our Neil did for it!

Innokin zlide filled ready

The spare parts that come with the kit for the tank are quite impressive like always with Innokin products!

Innokin has released the kit in 5 colours so I’m sure you’ll find one to suit you.

Innokin Coolfire Z50 mod colours

The device will fire in variable wattage as well as variable volts, the internal battery is a large 2100mAh perfect for all day use.

Mouth to Lung vape style.Innokin Coolfire Z50 to use ready

This product was sent direct from Innokin for the purpose of review – thank you!

As always my thoughts and views are my own after a considerable testing period.

Save 10% With Code ECC (Full Price Items)

Inside The Box

  • Innokin Z50
  • Innokin Zlide Tank 2ml
  • Micro USB cable
  • Spare Pyrex glass tank
  • Spare O-rings
  • 2x 510 drip tips
  • 2x coils 0.8Ω, 1.2Ω
  • Top fill port gasket
  • Z50 manual
  • Zlide manual
  • Innokin Coolfire Z50 complete kit


  • Output: 6-50W/3.0-7.5V
  • Battery: 2100mAh internal
  • Resistance range: 0.2-3.5Ω
  • 69in OLED screen
  • Zinc alloy body
  • Cut-off Time: 15 Seconds
  • Max Output current: 20A
  • Charging Port: Micro USB
  • Charging Current: 1A
  • Thread: 510
  • Compact and Versatile
  • Atomizer with a maximum diameter of 24mm
  • Threaded 510 Connection
  • Colours: Black, Gun Metal, Stainless Steel, Blue, Pink

Design and Build Quality

The kit comes very well presented in a card draw box, as you can see by my photos I was supplied with the black version decorated with a gold band around the top part of the body.

Innokin Coolfire Z50 kit display

Z50 Mod

One thing I can say about Innokin is their products are always built at very high standards.

The Z50 is no exception to that rule, made of zinc alloy the device is solid with a bit of weight behind it.

Innokin Coolfire Z50 batter body

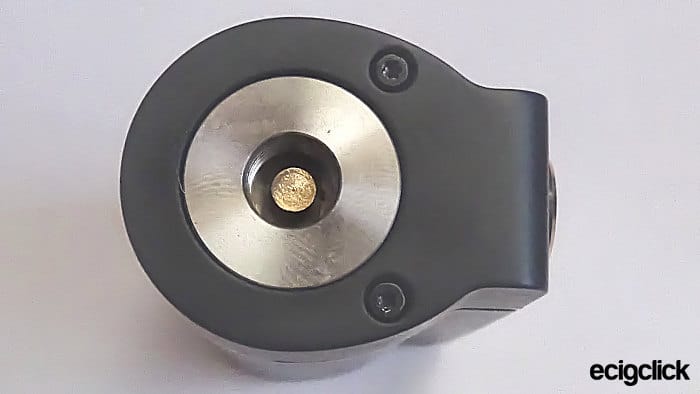

We have a flush stainless steel 510 connection point with a firm spring loaded gold plated pin, the cap of the mod is held in position by 2 hatch screws, the diameter of the connection will hold atomizers up to 24mm.

Innokin Coolfire Z50 connection 510

Or front of the device separated from the main body by a plinth type protrusion it has a 0.69in OLED screen, which shows everything you need to know, the screen is bright and clean.

Innokin Coolfire Z50 oled screen

The fire button while plastic has a nice click to it as do the 2 plastic adjustment buttons.

Innokin Coolfire Z50 face work

As stated the body is made of zinc alloy, it has a mostly round appearance, to the side of the screen you will find a micro USB port for charging.

Innokin Coolfire Z50 charge port

You will see that Innokin has added an on and off switch rather like the days of old and the original Coolfire 4, which I think was the last time I saw this type of switch associated with an Innokin product.

I can’t stress this enough the quality, design and manufacture of the Z50 mod it is exemplary! And very much in keeping with the earlier mods in the Coolfire range.

Innokin Coolfire Z50 Kit – the Zlide Tank

While I’m not going to review the tank in it’s entirety, a quick few words are in order!

It is a 24mm top fill tank in order to fill up the child safety mouth piece has to be removed, and the fill port then opens on a slide (btw the tank holds 2ml liquid).

Innokin zlide fill port mp

Innokin has included 2 coils with the tank

  • 8Ω Kanthal (15 to 18W)
  • 2Ω Kanthal (10 to 14W) pre installed.

    Innokin zlide coils

The tank is compatible with the Innokin Z coils.

Overall the tank is of good quality and design.

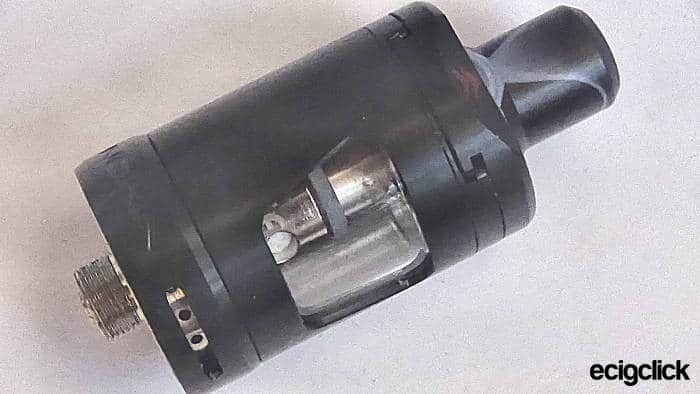

Innokin zlide tank empty

How Does the Innokin Coolfire Z50 Kit Perform?

I will be using the Innokin Coolfire Z50 Kit with the Zlide tank, and for this review I have filled the tank with Large Salts “Crispy Coffee” 50/50 liquid, starting with the 1.02Ω coil and moving on to the 0.8Ω.

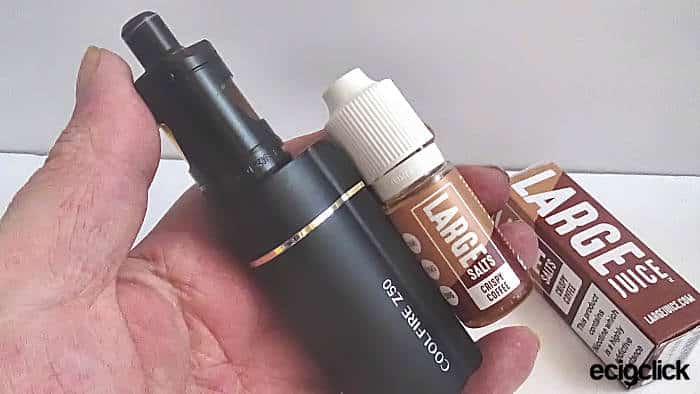

Innokin Coolfire Z50 check hand

Innokin Coolfire Z50 Kit Quick Start Guide

Innokin Zlide Tank

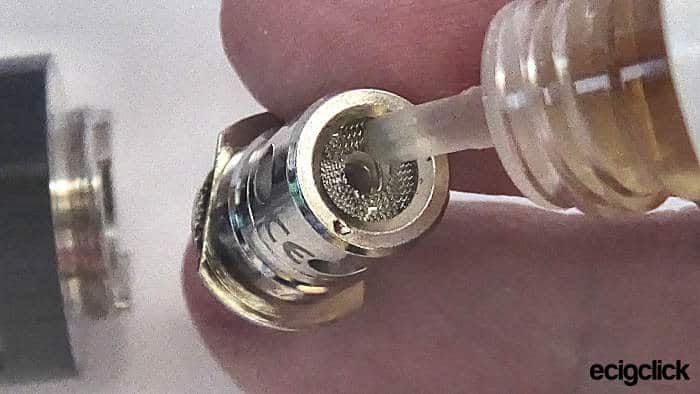

  • Unscrew the airflow ring, choose your coil pre wick it.Innokin zlide prep coil
  • Slide it into the tank body re assemble the airflow ring.

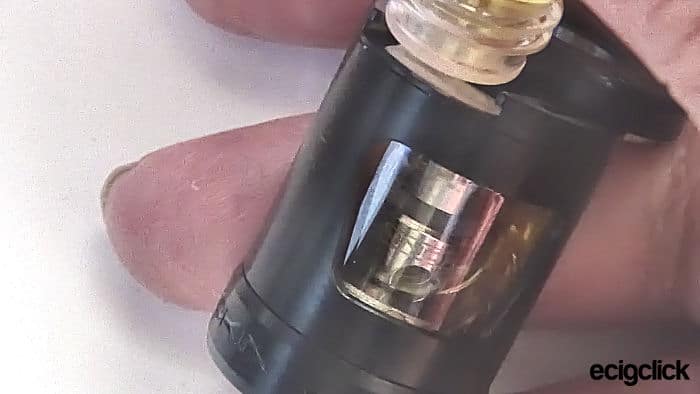

  • Remove the mouth piece and push open the fill port, fill the tank with e-liquid, I recommend either 50/50 or 70/30 liquids, close the port and replace the mouth piece.Innokin zlide fill tank

Innokin Coolfire Z50 Kit – Charge First!

Be sure before first use that the Innokin Coolfire Z50 Kit is fully charged you can do this by plugging the Micro USB cable in the device and into a spare USB port on your computer.

If you don’t have a computer you can use a 1A USB charge plug. You can buy these at any B&M store or online for the price of a coffee.

plug usb wall

  • Turn the device on by flipping the switch on the bottom of the mod; click the fire button 3 times and away you go!
  • To change between wattage and volts, hold down the fire button with up adjustment button for wattage, for volts repeat using the down adjustment and fire button.
  • Adjust the watts and volts with the up and down button, the power will round robin.
  • Pressing both adjustment buttons together will give you your puff count keep holding them down will flip the screen.

Innokin Coolfire Z50 Kit – 1.2Ω Coil.

I started at 10w with the Zlide and very rapidly increased the wattage to 14w with the airflow wide open, as I found that the lower airflow holes simply too tight for me!
Innokin Coolfire Z50 in hand
With the airflow wide open it was still a tight draw, the vapour production was good, the taste was a different matter it lacked the usual punch of a mouth to lung vape.

Innokin Coolfire Z50 Kit – 0.8Ω Coil.

Keeping the airflow wide, I started out at 15w and increased to 18w, a restricted DTL.
Innokin zlide z50 zlide puff
The vapour was warmer and a lot thicker, the flavour was acceptable!

Innokin Coolfire Z50 Kit – the Mod

There really isn’t much I can say about the Innokin Coolfire Z50 Kit mod, it functions like it’s described in the promotional bumph.
Innokin Coolfire Z50 in hand 2
It really is a straight forward of a device to use.

Innokin Coolfire Z50 Kit – Battery Life

The internal 2100mah battery if used at 12w for a mouth to lung vape lasted me over 7 hours, which I thought was great going.

However, after I switched coils and pumped up the wattage to 18w I got about 5 hours vape time, still pretty good in my mind.

Innokin Coolfire Z50 its stealthy
Charge time is slow over 2 hours, the mod does get quite warm while on charge!

I also noticed that Innokin have not included battery vent holes on the device, maybe this is why it get warm on charge?

Innokin Coolfire Z50 liquid with mod

I have tried several atomizers on the Innokin Coolfire Z50 Kit, probably the funniest had to be the Freemax Pro Tank with the 6ml bubble glass it look almost silly lol.

Still at 50w the vapour was good and the flavour was just up my alley “very tasty”.

Innokin Coolfire Z50 freemax tank

I even put on my old Mephistoe RDA with dual coils, it worked really well.


  • Exemplary quality and design
  • 6 to 50w
  • Fires 0.2Ω and above
  • Good vapour production
  • Acceptable flavour from the Zlide tank and 0.8Ω coil
  • Works great with other tanks and RDA’s


  • No battery venting
  • Mod gets warm while on charge
  • Takes it’s time charging

Final Review Verdict

The Innokin Coolfire Z50 Kit is the latest update in Coolfire range and is aimed at the vaping beginner or at the dedicated MTL vaper.

It has a 2100mAh battery with up to 50w power, pocket friendly with a great form factor, the mod fits the hand with almost stealth like quality!

Would I recommend the Innokin Coolfire Z50 Kit?

The Innokin Coolfire Z50 Kit is ideal for beginners or for experienced vapers looking for a second kit it will pair perfectly with mouth to lung, or low wattage sub ohm tanks or even small RDA’s.

I’ve got to say a big “Yes”!

Would I buy this kit again due loss or damage?

I think I’d buy just the mod as a replacement!

I have enough tanks and RDA’s that will work fine with the Innokin Coolfire Z50 Kit , not that I want you to get the wrong idea about the Zlide it’s a fair tank it just doesn’t float my boat flavour wise.

Have you used the Innokin Coolfire Z50 kit or thinking of buying it?

Let me know in the comments below – and of course fire away with any questions you might have 🙂
