The IJOY Mercury is a beautiful looking, weighty all-in-one system that has an integrated internal battery and some pretty fancy designs!Ijoy Mercury header

Shenzhen IJOY Technology Co.ltd is based in (surprise) China, IJOY have been around the vape scene for a long time!

They have bought us many vaping products over the years! Mods like – Shogun JR, Mystique Mod, Shogun UNIV Mod, and tanks/RDA’s/RTA’s like Avenger Sub Ohm Tank, EXO RTA and the Katana RDA.

What Can We Expect from the Mercury Pod System?

IJOY call this kit a Pod System, it’s really an AIO (All in One) kit!

Available in 4 different colour designs, the IJOY Mercury is powered by an 1100mAh integrated battery that will fire up to 12 watts. The Mercury is a low wattage device that allows you to adjust the voltage from 3.25-3.45v.

The device comes with 2 replaceable stock coils and the tank will hold 2ml of e-liquid. Featuring adjustable airflow control and resin covered sides this beautiful little mod can expel a restricted direct to lung hit as well as a great mouth to lung for a full flavoured vape.

What is Mouth to Lung and Direct to Lung vaping?

Ijoy Mercury in use

While I don’t have many IJOY products in my collection I do have some. Although a little older, one of my favourite setups to this day is the IJOY Limitless 200W paired with the IJOY Limitless RDTA, a difficult combination but if setup correctly the pair are phenomenal.

This kit was kindly sent to us for review, like always my thoughts and views on this product are my own after a considerable testing period.

See The mercury Kit In Action


Free WorldWide Shipping

In The Box

  • 1x IJOY Mercury Resin Pod System
  • 1x 1.0Ω MESH Coil – rated for 6-10W *pre installed
  • 1x 1.2Ω Mercury Coil – rated for 8-12W
  • Micro USB Cable
  • User Manual
  • Warranty Card

Ijoy Mercury out of box

 Features

  • Dimensions – 78mm by 40mm by 20mm
  • Integrated 1100mAh Rechargeable Battery
  • 2mL Internal Tank Juice Capacity
  • Wattage Output Range: 10-12W
  • Resistance Range: 1.0-3.0ohms
  • Zinc-Alloy & Stainless Steel Chassis Construction
  • Recessed Intuitive Firing Button
  • LED Battery Life Indicator Light
  • E-Juice Viewing Window
  • Threaded Top Cap Mouthpiece
  • Silicone Stopper
  • 1.0Ω MESH Coil – 6-10W
  • 1.2Ω MERCURY Coil – 8-12W
  • Adjustable Internal Airflow Located on tank
  • Short-Circuit Protection
  • Low Power Alert
  • Micro USB Port
  • Available designs Ghostfire, Crystal purple, Splendor, and Hellfire

Design and Build Quality

The Kit come nicely presented in a card draw box.Ijoy Mercury in box

IJOY Mercury Internal Tank

The tank has 4 parts (including the coil and mouthpiece) and is made of Stainless Steel, Plastic and Ceramic Resin.Ijoy Mercury tank parts

Base, Airflow and Coils

Starting with the base, it is made of stainless steel with threads that screw in to the tank body.Ijoy Mercury threads baseThere is a small O’ring around the bottom of the threads for a tight seal. The base has a one slot airflow which is easy to dial to suit your needs.Ijoy Mercury airflow base

IJOY include 2 coils with the kit.Ijoy Mercury coil heads

  • 1.0Ω MESH Coil – rated for 6-10W *pre installed
  • 1.2Ω Mercury Coil – rated for 8-12WIjoy Mercury coil types

Tank

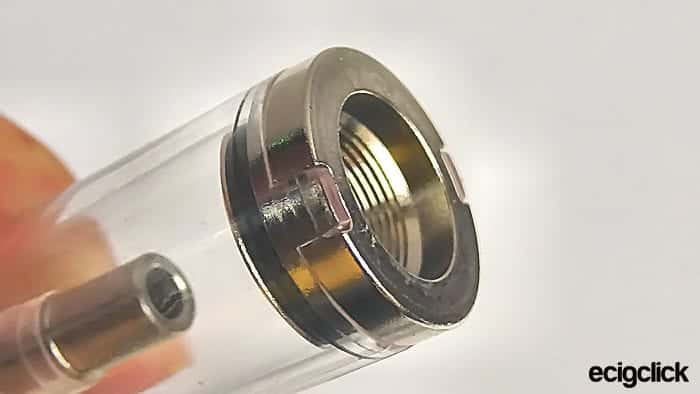

The tank that comes pre installed within the Mercury is made of plastic although it looks and feels like glass it is plastic. If you look carefully you will see a faint seam running one side of the tank.Ijoy Mercury tank seamThe tank has a stainless steel threaded ring into which you screw your base and coil.Ijoy Mercury ss threadThe ring looks as if it might be removed from the tank as it has an O’ring under it. Try as I may I have not yet been able to remove this section.

The chimney section is made of stainless steel it is non removable it is embedded into the inside top part of the tank.Ijoy Mercury ss chimneyAs you screw your coil into the tank the chimney slides into the top of the coil. The top of the tank has a silicone bung plugging the fill port.Ijoy Mercury in coil

MouthPiece

You only get one mouthpiece with the kit. It’s made of a ceramic resin with stainless steel threads fixed to the drip tip for screwing into the main body of the mod.Ijoy Mercury mouth piece Do not drop this mouth piece because it will easily break!

As you screw the mouthpiece on to the mod it will push the tank down to complete connection.

The design for the tank has been very well thought out with a good quality of manufacture.

The IJOY Mercury Battery | Mod

Made of Zinc Alloy, Stainless Steel and Resin the Mod holds an 1100mah internal battery, the Dimensions of the device are 78mm by 40mm by 20mm.

The battery is the classic square box, with chamfering along the edges making it very comfortable to hold in the hand.Ijoy Mercury comfort it is small enough to be used as a stealth vape and has a decent weight behind it for its size.Ijoy Mercury stealthy

Top and Bottom of the Mod

The tank sits to one side of the mod inside the battery casing hence the All In One (AIO) name. The battery has a wide hole for your tank and stainless steel threads for connecting your mouth piece.Ijoy Mercury top threads if you look into where the tank sits you will see the 3 gold plated connector pins which are spring loaded.Ijoy Mercury contacts battery

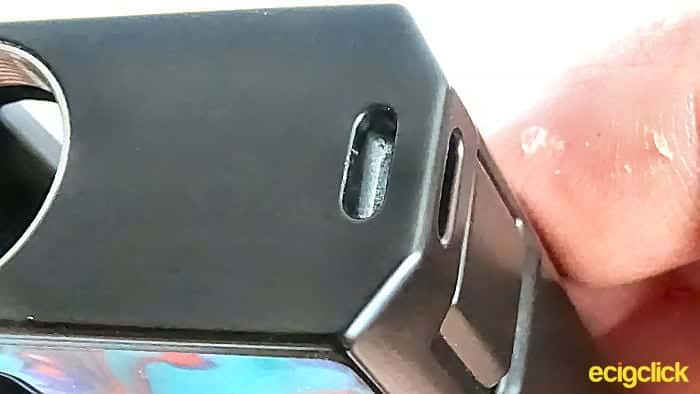

The mod has provision for a lanyard to be attached although there isn’t one included in the kit.Ijoy Mercury loop

The bottom of the device has the normal printed information.Ijoy Mercury bottom battery

Fire Button, Lights and USB port

The battery has a recessed operation button, which fires the device as well as changing the desired voltage.

The lights directly under the operation button indicate your voltage level as well as battery state.

The micro USB charge port is located under the indicator lights.workface Mercury Ijoy

Sides of the device

The Mercury has colourful resin plates. Both sides have an airflow space as well as a viewing window each side so you can keep an eye on your liquid level. Ijoy Mercury left sideThe battery is excellent quality, with a superb job done on design and quality of manufacture.

How Does the IJOY Mercury Kit Perform?

For this review I will be using the 1.0Ω Mesh coil with Mango flavoured CBD vape juice from CBD Sorcery.Ijoy Mercury liquid

Basic Quick Start Guide

How to Fill the Mercury Tank and Change the Coil

I would recommend you run down the liquid when changing the coil.

  1. Decide which of the 2 coils you want to use, remove the mouth piece from the device and tip the unit to remove the tank.
  2. Unscrew the base of the tank and unscrew the old coil.
  3. Pre wick the new coil, by dropping a few drops of liquid into the top of the coil head to start the process of soaking the cotton! Screw the new coil back into the base and replace the base into the tank.

Ijoy Mercury prep coil

4. Remove the silicone plug to fill the tank with e-liquid.Ijoy Mercury fill tank

5.   Replace the plug, set the airflow to your desired position now!Ijoy Mercury full tank

6.   Place the filled tank back into the Mercury, and screw the mouth piece back into position.Ijoy Mercury place tank

Tip/s – Don’t fire the device straight away leave it standing for 5 minutes so the coil can soak up more e-liquid, also I tend to stay away from high citrus liquids as they may affect the plastic tank.

Battery operation

5 rapid clicks will turn the device on and off

The battery has 3 types of adjustable output.

  • Blue LED – Represents 3.45V
  • Green LED – Represents 3.35V
  • Red LED – Represents 3.25V

To navigate these voltages press the fire button rapidly 3 times for each value

Battery indication levels LED lights

  • 100 – 70% = 3 Green lights
  • 70 – 35% = 2 Green lights
  • 35 – 1% = 1 Green light
  • Red – Flashing 10 times is the charge prompt

Protections

  • Open circuit
  • Short circuit
  • Low power alert

Flavour and Vapour quality

3.35 – 3.45 Volts

I set the device up on 3.45v (Blue LED) and setting the airflow to open fully.

I received a warm restricted direct to lung draw with adequate cloud production.

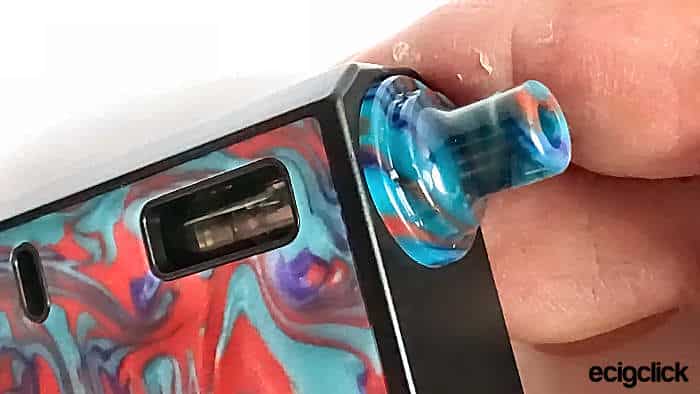

The flavour was good, not stellar, I did a test chain vape of 5 toots the airflow handled it quite well but I could feel the tank getting hot via the observation windows.Ijoy Mercury tip in place

Next I took the tank out and reduced the airflow to half and set the volts on (Green LED) 3.35v and re assembled the tank in to the Mercury, I was able to get a decent mouth to lung draw.

The vapour was not as warm or as thick but I expected that, what I was not expecting was the sudden burst of flavour from my Mango CBD liquid.

It was almost like biting into the fruit sweet and juicy with a slight sharpness as it hit my taste buds.Ijoy Mercury cool flavour

My personal opinion is that IJOY have nailed both MTL and DTL.

Coil and Battery life

While I have been vaping on the 1.0Ω coil for well over a week and it has performed very well, I have noticed over the last day or two that the intensity of the flavour has dropped a bit still a week with one coil is damn good in my book.

At 3.35v I managed to get 6 hrs between charges, charging is a little slow for such a small device just over 2hrs from flat.Ijoy Mercury lay down

Pros

  • Very good looking kit
  • Adequate vapour production
  • Good flavour production
  • Good coil life
  • Easy to understand light system
  • Price of kit

Cons

  • Plastic tank
  • Changing the airflow
  • Charge time
  • Mouth Piece

Final Review Verdict

I can honestly say that most of my time spent with this kit has been a love hate relationship!

It has its good points like flavour, longevity of the coils and most importantly the price of the kit! But it also has its annoying little niggles that could, over time, drive me mad LOL.

Things like the mouthpiece. I would liked to have seen an extra threaded cap included with provision for me to use my own drip tips, as it stands if the one supplied was to be broken the mod would be rendered useless.

The tank is another sticking point with me being made of plastic I have to avoid my favourite citrus liquids for fear of damaging the tank; saying that the kit performed exactly as it says on the tin.

Would I recommend the Mercury AIO Starter Kit?

Yes I would, to new vapers and flavour chasers.

Would I buy the iJoy Mercury kit again due loss or damage?

No, too much messing around every time I want to change the airflow.

Have you use the iJoy Mercury kit? Have any questions? Let us know in the comments below!
